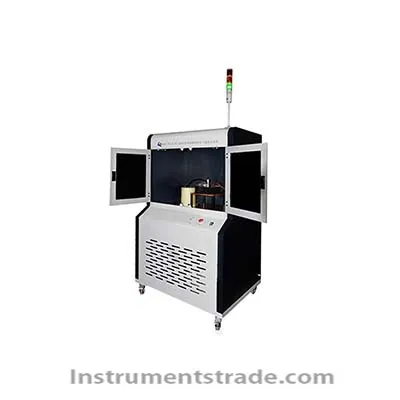

ZY6173 50KV solid insulation material dielectric strength testing machine Introduction
ZY6173 50KV solid insulation material dielectric strength testing machine is suitable for testing the breakdown strength and withstand voltage time of solid insulating materials such as plastic, film, resin, mica, ceramic, glass, insulating paint and other medium under power frequency voltage.
The dielectric strength testing machine for solid insulating materials is suitable for testing the breakdown strength and withstand voltage time of solid insulating materials such as plastics, films, resins, mica, ceramics, glass, insulating varnish and other medium at power frequency voltage.
It complies with GB/T1408.1-2006 "Test method for electrical strength of insulating materials";
Comply with IEC60243-1 "Test method for electrical strength of solid insulating materials - test under power frequency";
In line with GB/T1695-2005 "Vulcanized rubber power frequency breakdown voltage strength and withstand voltage determination method" standard;
In line with GB/T3333-1999 "Cable Paper Power Frequency Breakdown Voltage Test Method" standard;
In line with GB/T12656-1990 "capacitor paper power frequency breakdown voltage measurement method" standard;
Compliance with ASTM D149 Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Industrial Power Supply Frequency Technical Parameters
Test voltage: 0-50KV continuously adjustable
Transformer capacity: 5KVA
Breakdown voltage: 0-50KV
Short-time (fast) boost speed is divided into three levels: 500, 1000, 2000V/s
Slow boost speed (120s-240s): 2, 5, 10, 50, 100, 200V/s
Very slow boost speed (300-600s): 1, 2, 5, 10, 20, 50, 100, 200V/s
Boost speed regulation: for electric speed regulation, servo motor
Voltage measurement accuracy: ≤ 2%
Leakage current selection: 1-40mA
Test method: DC test, AC test
Boost mode: manual boost and electronic boost
Sine wave with power frequency power supply of 50HZ
Working power: AC220V, 50HZ; power: 6KW
Upper electrode diameter 75mm, height 15mm, lower electrode diameter 25mm, height 25mm
Dimensions: L1400mm × W1040mm × H1650mm (including caster height).
Introduction
ZY6173 50KV solid insulation material dielectric strength testing machine is suitable for testing the breakdown strength and withstand voltage time of solid insulating materials such as plastic, film, resin, mica, ceramic, glass, insulating paint and other medium under power frequency voltage.
The dielectric strength testing machine for solid insulating materials is suitable for testing the breakdown strength and withstand voltage time of solid insulating materials such as plastics, films, resins, mica, ceramics, glass, insulating varnish and other medium at power frequency voltage.
It complies with GB/T1408.1-2006 "Test method for electrical strength of insulating materials";
Comply with IEC60243-1 "Test method for electrical strength of solid insulating materials - test under power frequency";
In line with GB/T1695-2005 "Vulcanized rubber power frequency breakdown voltage strength and withstand voltage determination method" standard;
In line with GB/T3333-1999 "Cable Paper Power Frequency Breakdown Voltage Test Method" standard;
In line with GB/T12656-1990 "capacitor paper power frequency breakdown voltage measurement method" standard;
Compliance with ASTM D149 Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Industrial Power Supply Frequency
