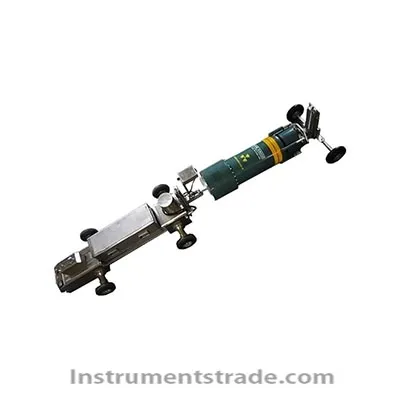

Features: 1. Do not use the gamma source localization, the use of wireless microwave video positioning, safer, more intuitive and more accurate. 2. Climb the car with the operator fully realized the man-machine dialogue, all states of the climbing car inside the pipeline, the operator be clear at a glance. For example: insufficient testing machine fault, battery, overtemperature and pipelines has water in pipes, climbing car running distance, etc., the operator all clear. 3. Video surveillance portable belt, can have video monitor positioning function, special occasion can increase the positioning accuracy by using video (big band), reduce scrap rate, can guarantee the filming location accuracy 100%. 4. Climbing car has arrived in joint automatic stop function, the operator does not need to be real-time monitoring, assist the operator to determine the number of joint according to the function. 5. With functions of soft start climbing car, increase the Angle position precision and climbing. 6. Large diameter and thick wall pipe with KV X-ray generator regulating function, guaranteeing the X-ray film of transillumination blackness. Technical parameters: Model: ZY - 10 Suitable diameter range: Φ 508 ~ 1400 (mm) Dimension: 1440 * 240 * 240 (mm) Controller unit size: 420 * 360 * 360 (mm) Body weight: 75 (kg) Crawling speed: 18 (m/min) Positioning error: + / - 5 (mm) Exposure time: 0 ~ 5 (min) Apply to wall thickness: 0 ~ 28 (mm) Creep: 5 (km) 17 ah battery power: 120 v lead-acid battery Maximum gradability: 30 ° Turning radius: 7 d or higher Positioning: wireless microwave video positioning Driving mode: double drive Radiation Angle: 360 x 40 ℃ Relative humidity: 90% Working temperature: - 20 ℃ ~ 75 ℃ Storage temperature: - 40 ℃ ~ 80 ℃
Features: 1. Do not use the gamma source localization, the use of wireless microwave video positioning, safer, more intuitive and more accurate. 2. Climb the car with the operator fully realized the man-machine dialogue, all states of the climbing car inside the pipeline, the operator be clear at a glance. For example: insufficient testing machine fault, battery, overtemperature and pipelines has water in pipes, climbing car running distance, etc., the operator all clear.
