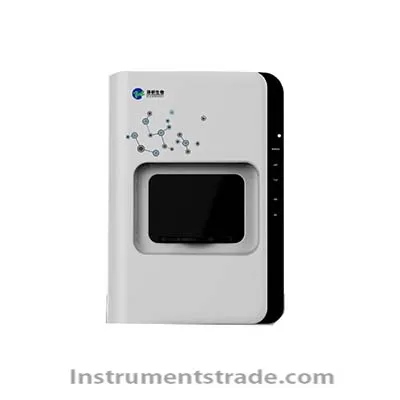

ZX-400 automatic colony counter Introduction
ZX-400 full-automatic colony counter uses a completely closed dark box to isolate the interference of ambient light and completely eliminate the flare and halo phenomenon formed by the stray light refraction in glass Petri dishes, which provides the necessary light and shadow conditions for accurate colony counting.
ZX series full-automatic colony analyzer is composed of image acquisition system and colony statistical analysis software. Surveillance, food hygiene, microbial colony analysis and scientific research in colleges and universities, research institutes and other fields. Technical Parameters
1. Imaging device
Fully enclosed black box, which can eliminate stray light interference from the external environment
Tri-color LED visible light
Built-in 254nm UV lamp can sterilize the cavity
Built-in 366nm UV lamp can excite Escherichia coli, coliform fluorescence, green fluorescent protein
The brightness of the upper and lower light sources can be freely switched on and off, and a full-touch adjustment button is used.
Automatic color temperature control, close to natural light
16MP Super Clear Color Camera
5MP HD lens 8mm
Software functions
1) Classified one-click statistics:
Monochrome bacteria one-click count
PetriFilm ™ one-click counting
RIDA ™ one-button counting
Compact Dry ™ one-button counting
One-button counting of similar bacteria
One-button count of tiny bacteria
One-click count of disperse bacteria
One-click count of adhesion bacteria
One-click counting of large colonies
Multicolor bacteria automatic stack count
2) Auxiliary statistical tools:
Manual correction: mouse clicks to add or delete missing colonies
Intelligent correction: intelligent correction can be performed based on one-click statistics
Measurement tools: angle, line segment, area, curve
Removal of contaminated bacteria (impurities): Elimination of impurities according to color, diameter and roundness
Single colony morphology analysis: Click on a single colony to know the roundness, diameter, perimeter, area, etc. of this colony
All colony morphology: After statistics, you can know the roundness, diameter, perimeter, area and other information of all colonies on the plate
Colony size classification: After the statistics are completed, according to the size of each colony, it is displayed in 25 steps.
Conversion of the total number of sample colonies: automatic conversion based on the actual culture dish diameter and sample dilution
3) Data security and management:
Multi-user login system, each account forms independent data, and the data is stored for a long time
Statistical results are output in PDF format, original data cannot be changed
Equipped with audit trail function, each step of the software operation of the operator automatically records the software to facilitate the traceability of subsequent results data
Compatible with CFR 21 Part 11: System security, operation control, file management
