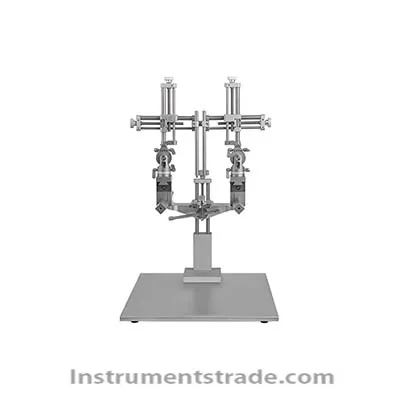

ZS-D large animals brain stereotaxic device for Brain disease model establishment

Product ID:SHDWnlt012

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZS-D
    Brand NameBJZSDCKJ
    Payment TermsT/T, paypal
    Features:
    1. There are many kinds of animal head clips (marked with one kind and purchased separately if needed), which can be used in a variety of experimental animals.
    For example, in some larger animals, such as pigs, dogs and cats, the slide rule of the electrode moving frame can move a long fan.
    2. The number of components is small, the main frame is relatively thick, and the main components are all made of the same metal, so that the expansion coefficient of each component is the same, avoiding contact potential.
    The electrode holder and the animal head are fixed and clamped on the main frame.
    3. The electrode moving frame is easy to load and unload.
    The electrode holder can be removed during the operation of the animal head, and the instrument can be used independently as a head fixator.
    This ensures that the electrode holder is not vulnerable to damage or deflection.
    4. The instrument is equipped with a plurality of fully symmetrical electrode moving frame, which can insert electrodes in the brain structure of the same name on both sides at the same time, or multiple electrodes on the same side.
    5. The vertical slide rule of the electrode moving frame should be able to rotate a certain Angle forward, backward and left, so as to be used in fixing the horizontal line of the animal's head, or to insert electrodes into the brain at a certain Angle.
    6. The electrode fixing clamp on the electrode moving frame needs to be flexible and easy to unload. When the electrode is buried, the electrode can be easily loosened and detached.
    7. Each slide rule shall read 1/10 mm more accurately.
    Main technical parameters:
    1. Weight: about 10kg
    2. Track length: 400mm
    3. Track spacing: adjustable
    4. Accuracy: plus or minus 0.1 mm
    5. Material: alloy material
    6. Shape size: 950 * 450 * 500mm(general size required by user design)
    7, 360 - degree rotation manipulator, oscillation amplitude of 180 (+ 90 °)
    8. Counting accuracy: plus or minus 0.1mm
    9. Three-dimensional propeller precision: + / - 0.1 mm
    10. Three-dimensional propulsion stroke: 80mm(X axis: 80mm,Y axis 80mm,Z axis 80mm)
    11. Graduated laser engraving

  • Features:
    1. There are many kinds of animal head clips (marked with one kind and purchased separately if needed), which can be used in a variety of experimental animals.
    For example, in some larger animals, such as pigs, dogs and cats, the slide rule of the electrode moving frame can move a long fan.
    2. The number of components is small, the main frame is relatively thick, and the main components are all made of the same metal, so that the expansion coefficient of each component is the same, avoiding contact potential.
    The electrode holder and the animal head are fixed and clamped on the main frame.
    3. The electrode moving frame is easy to load and unload.
    The electrode holder can be removed during the operation of the animal head, and the instrument can be used independently as a head fixator.
    This ensures that the electrode holder is not vulnerable to damage or deflection.
    4. The instrument is equipped with a plurality of fully symmetrical electrode moving frame, which can insert electrodes in the brain structure of the same name on both sides at the same time, or multiple electrodes on the same side.
    5. The vertical slide rule of the electrode moving frame should be able to rotate a certain Angle forward, backward and left, so as to be used in fixing the horizontal line of the animal's head, or to insert electrodes into the brain at a certain Angle.
    6. The electrode fixing clamp on the electrode moving frame needs to be flexible and easy to unload. When the electrode is buried, the electrode can be easily loosened and detached.
    7. Each slide rule shall read 1/10 mm more accurately.
