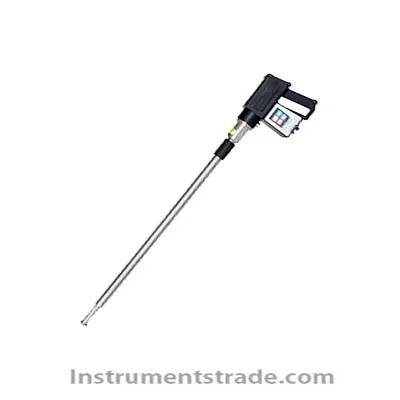

ZR-3062 integrated flue gas flow rate humidity direct reading instrument Introduction
ZR-3062 integrated flue gas flow rate and humidity direct reading instrument adopts the removable RC method to measure the moisture content of the flue, and the whole process is accompanied by heat, which overcomes the complicated working conditions of high temperature, high humidity, high dust and high corrosion of the flue. Integrated flow rate measurement, smoke temperature measurement, dynamic and static pressure measurement and other related parameters, with communication function, can be used in conjunction with the supporting instruments. The direct reading instrument is widely used in industrial field measurement, coal-fired power plant emission detection, environmental monitoring department testing and other fields. Features
1. The sampling tube and the host are integrated and designed for portability;
2, the sampling tube is accompanied by heat, adapt to high temperature, high humidity, high dust, high corrosion, static electricity and other complex working conditions, effectively extending the service life of the measuring probe;
3. The imported temperature and humidity sensor is used to measure the moisture content by the extraction type resistive capacity method to ensure the accuracy and stability of the measurement;
4, high-brightness color touch screen + button operation, wide temperature work, easy to operate, good human-computer interaction;
5, built-in large-capacity memory, can save at least 50,000 sets of sampled data and power-down data for a long time;
6, data export and program upgrade through U disk;
7, built-in Bluetooth module, optional Bluetooth printer for data printing;
8. Reserve the RS485 standard communication interface, which can be used in conjunction with the supporting instruments;
9, built-in lithium battery, can meet the instrument query, print, export and other related functions;
10. Reserve DC power supply interface, which can work with external lithium battery;
11. The benchmark flow rate and the average value of each parameter can be automatically calculated and stored according to the input flue area and other parameters. Technical parameters
Test items: moisture content, flue gas flow rate
Indication error: ±2%
Repeatability: 2%
Response time: 3 minutes
Stability: ±2%
ZR-3062 integrated flue gas flow rate and humidity direct reading instrument adopts the removable RC method to measure the moisture content of the flue, and the whole process is accompanied by heat, which overcomes the complicated working conditions of high temperature, high humidity, high dust and high corrosion of the flue.
