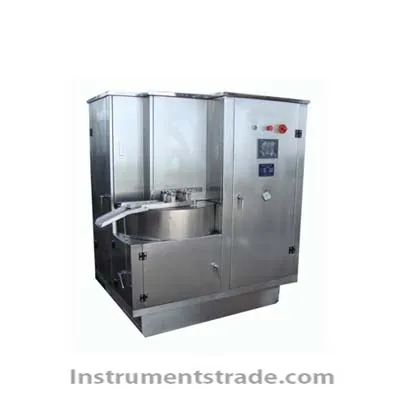

ZPW-4-4 rotary tablet press Introduction: This machine is a specialized food machinery equipment for producing military and civilian compressed biscuits. The production process of compressed cookies includes five parts: 1. cookie baking, 2. powder coating, 3. mixing, 4. pressing, 5. packaging, etc. The biscuit compressor is a device used in the production process. The mechanical structure, hydraulic system, electric drive, and electronic control of this machine are composed of several parts, including a stainless steel hopper and a discharge track. This equipment is operated by unmanned automatic operation except for feeding. Multiple devices connected by conveyor lines can form a unit for automatic operation, and if equipped with an automatic feeding part, it can achieve fully unmanned operation. Technical parameters: Maximum compression pressure (kg/square): 180-250 Maximum compression diameter (mm): 40*80 Maximum filling depth (mm): 40 Maximum tablet thickness (mm): 15-30 Maximum working diameter (mm): 750 Rotary speed (RPM): 8 Production capacity (pieces/hour): 7680 Electric motor (kW): 11 Dimensions (mm): 1900 × 1260 × 1960 Host weight (kg): 3200
Introduction: This machine is a specialized food machinery equipment for producing military and civilian compressed biscuits. The production process of compressed cookies includes five parts: 1. cookie baking, 2. powder coating, 3. mixing, 4. pressing, 5. packaging, etc. The biscuit compressor is a device used in the production process. The mechanical structure, hydraulic system, electric drive, and electronic control of this machine are composed of several parts, including a stainless steel hopper and a discharge track. This equipment is operated by unmanned automatic operation except for feeding. Multiple devices connected by conveyor lines can form a unit for automatic operation, and if equipped with an automatic feeding part, it can achieve fully unmanned operation.
