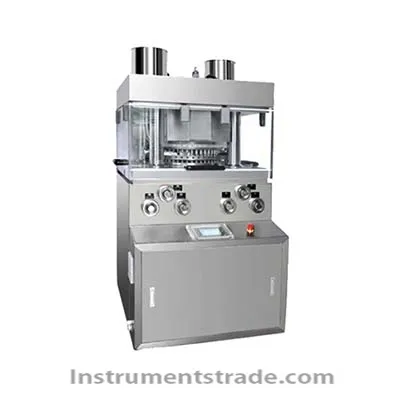

ZP-47 high output tablet press for Pharmaceutical industry

Product ID:SYZXyp019

Price: Please inquire PDF Format
Supply Ability:20SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZP-47
    Brand NameSHTF
    Payment TermsT/T,paypal
    Introduction:
    This machine is a double-pressure automatic rotary continuous tablet machine that compresses granular raw materials into tablets. He is mainly responsible for the production of the pharmaceutical industry and also for the chemical, food, and electronics industries.
    Features:
    1 The outer enclosure is fully enclosed, the material is made of stainless steel, and the inner table is made of stainless steel, which can maintain the surface gloss and prevent cross-contamination. It conforms to GMP.
    2 The use of a transparent protective cover makes it possible to clearly see the mechanical operation. And it can be fully opened for easy cleaning and maintenance.
    2 The speed is stepless speed regulation, which can be arbitrarily adjusted.
    3 Mechatronics integration, using touch keys and displays (speed, output, failure), etc.
    5 The transmission system is enclosed in the mailbox below the main body of the machine. It is a separate component that is safely separated, does not pollute each other, and causes the drive shaft to penetrate into the oil pool and is fully lubricated, resulting in reduced noise and wear.
    6 The mechanical dust collection device can absorb the dust of the poplar in the pressing room.
    7 It is equipped with a forced feeding system and a preloading roller to cope with a variety of powder materials.
    Technical Parameters:
    Model Number: ZP-47
    Number of dies (pay): 47
    Maximum tableting pressure (kN) : 80-100
    The maximum tablet diameter (mm): 16
    The maximum filling depth (mm) : 19
    Turntable speed (r/min): 5-36
    Productivity (film/hour): 208680
    Motor (kW): 5.5kw
    Dimensions (mm): 1150X930X1800
    Host weight (kg): 3200

  • Introduction:
    This machine is a double-pressure automatic rotary continuous tablet machine that compresses granular raw materials into tablets. He is mainly responsible for the production of the pharmaceutical industry and also for the chemical, food, and electronics industries.
