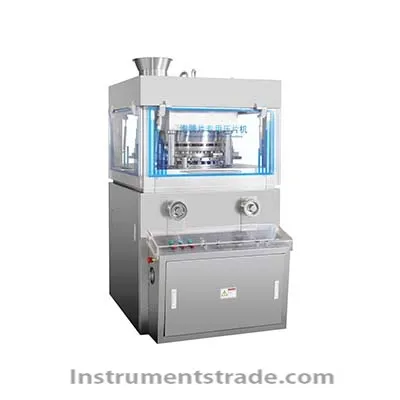

ZP-25 effervescent tablet dedicated tablet press Introduction:
This machine is designed for tablets with strong viscosity and difficult demolding, using a unique demolding method to ensure that the compressed tablets are smooth, beautiful, and aesthetically pleasing. It is an equipment for producing effervescent tablets, disinfectants with strong viscosity, and other tablets.
Specially developed rotary tablet press for materials with high sugar content and easy stickiness. This machine is currently the tablet press for pressing effervescent tablets in the pharmaceutical industry. There are currently two methods for pressing effervescent tablets internationally: one is to spray magnesium stearate onto the nails during the production process of the tablet press. Another type is the rotation of the die. The effervescent tablet press produced by our company is the second type.
This machine is equipped with the ability to rotate the upper and lower dies by about 30-40 degrees while maintaining pressure (without fully decompression) during tablet production. By rotating the upper and lower dies, the fine powder adhered to the punch pins can be twisted and pressed onto the tablets, ensuring that the upper and lower dies are in a bright and normal state. characteristic:
1.This model is specially designed for powders with strong viscosity, poor fluidity, susceptibility to moisture, and high humidity. It is a choice for high humidity suppression environments.
2. The equipment is made of stainless steel material and meets GMP requirements.
3. Adopt frequency conversion speed regulation method to adjust the speed for different tablets.
4. The outer shell is fully enclosed, with the upper half enclosed by a window and the lower half surrounded by stainless steel. The pressing workshop has stainless steel covers at the parts in contact with the components, which can maintain surface gloss and prevent cross contamination, meeting GMP requirements.
5. Equipped with a transparent glass window, the pressing status can be clearly observed. The window is supported by a gas spring, and when the door and window are opened, it can directly contact the inside of the machine, making it easy to operate and maintain.
6. This machine is a single pressure tablet press.
7. Equipped with overload protection device, the power-off protection device can automatically shut down when the pressure is overloaded. Technical parameters:
Turntable impulse module: 25 pairs
Maximum compression force: 100 kN
Maximum compression diameter: 25mm
Maximum tablet thickness: 3-11mm
Maximum filling depth: 10-25mm
Turntable speed: 20 revolutions per minute
Tablet production: 300 million tablets/hour
Rotary table working diameter: 420 millimeters
Outer diameter of the middle mold: 40mm
Medium mold height: 22 millimeters
Diameter of upper and lower punch rods: 29 millimeters
Upward punch length: 145 millimeters
Lower punch rod length: 155 millimeters
Machine dimensions (length * width * height): 1230 * 950 * 1800 millimeters
Net weight of the machine: 2000 kilograms
Power: 5.5 kW
Voltage: 380 volts
