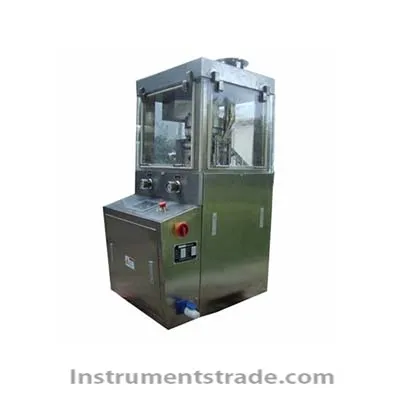

ZP-15D Rotary Tablet Press

Product ID:SYZXyp015

Price: Please inquire PDF Format
Supply Ability:20SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZP-15D
    Brand NameSHTF
    Payment TermsT/T, paypal
    Introduction:
    ZP-15D rotary tablet press is a medium-sized rotary tablet press newly developed by our company. It is used to press granulated raw materials into various tablets. It is mainly used for tablet production in the pharmaceutical industry. It is also suitable for chemical, food, electronics, ceramics and other industrial sectors. The enclosure is fully enclosed. The material is made of stainless steel. The internal table top is made of stainless steel. The surface of the turntable is specially treated to maintain surface luster and prevent cross-contamination. It complies with GMP requirements. The external dust collection device can recover the excess dust generated during the pressing process. The doors and windows with transparent organic glass can clearly observe the state of the tablet and can be fully opened for easy internal cleaning and maintenance. All controllers and operators are well laid out. PLC touch screen operation, with pressure display, speed display and other functions, easy operation, smooth rotation, safe and accurate. All transmissions are arranged inside the machine, keeping the parts clean. With overload protection device, when the pressure overload, it can automatically stop.
    Features:
    1, the maximum pressure is 80KN;
    2, the maximum tablet diameter up to Ф25mm;
    3, man-machine interface, PLC touch screen operation;
    4, pressure display, output display, speed display;
    5. It is the preferred product for laboratories and small batch production;
    Technical Parameters:
    Model Number: ZP-15D
    Die number (pay): 15
    Maximum tableting pressure (kN): 80
    The maximum tablet diameter (mm): 25
    The maximum filling depth (mm): 15
    Tablet thickness (mm): 6
    Turntable speed (r/min): 0-30
    Maximum production capacity (chips/hours): 27000
    Motor power (kW): 2.2
    Overall Dimensions (mm): 820*650*1550
    Host weight (kg): 1000


  • Introduction:
    ZP-15D rotary tablet press is a medium-sized rotary tablet press newly developed by our company. It is used to press granulated raw materials into various tablets. It is mainly used for tablet production in the pharmaceutical industry. It is also suitable for chemical, food, electronics, ceramics and other industrial sectors. The enclosure is fully enclosed. The material is made of stainless steel. The internal table top is made of stainless steel. The surface of the turntable is specially treated to maintain surface luster and prevent cross-contamination. It complies with GMP requirements. The external dust collection device can recover the excess dust generated during the pressing process. The doors and windows with transparent organic glass can clearly observe the state of the tablet and can be fully opened for easy internal cleaning and maintenance. All controllers and operators are well laid out. PLC touch screen operation, with pressure display, speed display and other functions, easy operation, smooth rotation, safe and accurate. All transmissions are arranged inside the machine, keeping the parts clean. With overload protection device, when the pressure overload, it can automatically stop.
