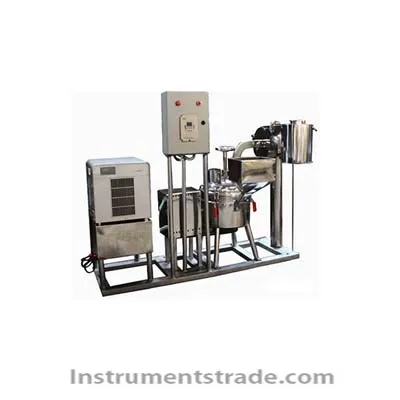

Introduction: The machine is the use of rolling and shearing in the form of dry and brittle materials to achieve ultra-fine grinding equipment. It consists of cylindrical crushing chamber, grinding wheel, grinding rail ring, fan, material collection system (water-cooled optional cold water circulation system) and other components. The material enters the column crushing chamber through the feed port and is crushed and cut by the grinding wheel of the circular motion along the grinding rail. The crushed material is blown out of the crushing chamber by the negative pressure airflow caused by the fan, into the material collecting system, filtered through the filter bag, the air is discharged, the material and dust are collected and the crushing is completed. This series of models can be widely used in traditional Chinese medicine, Western medicine, pesticides, biotechnology, cosmetics, food, feed, chemicals, ceramics and other industries dry and brittle materials, ultra-fine grinding needs. Especially for fibrous (such as Chinese herbal medicine, Ganoderma lucidum, etc.), high toughness (animal angle, cotton, etc.), high hardness (such as glass, ceramics, etc.) material smashing effect is more perfect, more suitable for universities and research institutes laboratory Ultrafine powder for small batch test. Features: 1) high fineness, plant fiber crushing fineness of up to 300-2000 particle size 8-20μm (D98); hard, brittle material crushing fineness in 2000-10000 mesh size 1-5μm (D98), some Special materials are even finer. 2) low temperature, clever structure design can effectively make the material when the temperature to be flexible control. The external air into the crushing chamber after taking out the finished material at the same time, will also take away the heat generated by the operation of the body, so at room temperature, finished powder temperature up to 45 ℃ or so, fully meet the needs of most users. Of course, for the temperature requirements of relatively high special users, this series models can also be loaded with water cooling system, so as to achieve better low temperature effect. 3) low energy consumption, compared with other forms of ultra-fine grinder, this series models do not need air compressor and related ancillary equipment, making power consumption greatly reduced; small footprint, saving space; easy to control, Do not need too many operators, significant savings in labor costs. 4) Low energy consumption, supplies province, and material contact parts made of stainless steel, avoiding the other medium enters; smooth the whole structure, material crushing, collect sufficient loss is reduced; DRUM rail grinding process superhard material is made of stainless steel After treatment, easy to wear, long life, thereby reducing the use of cost, and the finished product of the metal content will not increase. 5) easy to control, electronic control box design is highly appropriate, the whole machine can be adjusted, because the host motor using a variable frequency control technology for linear speed, so that users can adjust within different fineness range, better meet A variety of fineness requirements. Most of the material into the fineness of the control in the 30 head look, but the leaves of leaves and other leafy material can be directly without the direct processing of ultra-micro-processing. 6) compact structure, low vibration, good overall, all units of the system to agree to the base, no special screws to the feet, according to the use of the venue to move freely. Technical indicators: Model: ZNC-300 Material collection: cyclone separation Structure: one type Dust removal method: negative pressure dust collection Voltage: 380V Crushing principle: rolling rolling shear Power: 1.47 Kw Material: 304 # stainless steel Weight: 170Kg (water-cooled) 225Kg Adjustment mode: frequency conversion (200r / min-1000r / min) Dimensions (mm): 850 × 800 × 795 (wa
