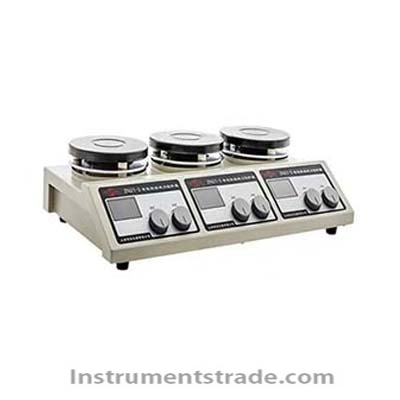

ZN21-3 three-station intelligent thermostatic magnetic stirrer
Introduction: The ZN21-3 intelligent thermostatic magnetic stirrer is a single-row three-station, each station can be individually controlled. It adopts brushless motor drive, speed display, speed control adopts closed-loop speed stabilization circuit, which can control ±1 revolution. The temperature control adopts the Pid method to automatically control the temperature. The table temperature and the temperature in the cup can be set to measure and display, and can be controlled to ±0.1 degrees. The timing can be as long as 9999 minutes. Technical parameter: Power source: Ac220V±10% Working method: continuous Speed: 50～2000r/min Motor torque: 40mN•M Mixing capacity (water): 2L (single station 5L) Heating power: 600W X3 Table temperature setting: room temperature～330℃ Liquid temperature setting: room temperature~250℃ Temperature control accuracy: ±0.1℃ Digital display: temperature, speed display Timing range: 0~9999 minutes Sensor index number: PT100 Heating plate size: Φ140mm black-plated stainless steel Dimensions: 500×300×110mm Weight: 8.5kg Accessories: one long and short meter rod, one set of temperature sensor and bracket, three sets of stir bar
Introduction: The ZN21-3 intelligent thermostatic magnetic stirrer is a single-row three-station, each station can be individually controlled. It adopts brushless motor drive, speed display, speed control adopts closed-loop speed stabilization circuit, which can control ±1 revolution. The temperature control adopts the Pid method to automatically control the temperature. The table temperature and the temperature in the cup can be set to measure and display, and can be controlled to ±0.1 degrees. The timing can be as long as 9999 minutes.
