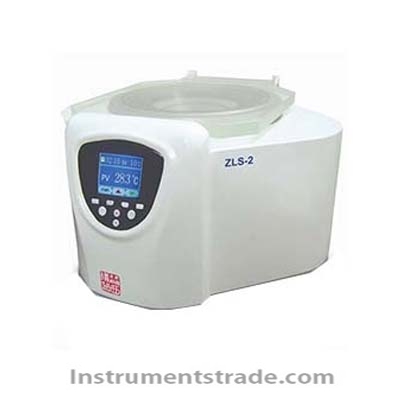

ZLS-2 vacuum centrifugal concentrator Introduction:
ZLS series vacuum centrifugal concentrator comprehensively utilizes centrifugation, vacuuming and heating to effectively evaporate solvent and recover biological or analytical samples with high efficiency. It has the function of quickly and safely evaporating water and organic solvents in the sample. The processed sample can be conveniently used for various qualitative and quantitative analyses - chemical, biochemical, biological analysis, immunoscreening, food safety, residue analysis, and the like. Widely used in life sciences and chemistry, pharmaceutical and other fields. Suitable for concentration of immunoglobulins, concentration of drug metabolites, SPE solid phase extraction, pre- and post-treatment of liquid chromatography, ADMET/toxicology, polymer chemistry, DNA/RNA purification and concentration, oligomerization, forensic/drug abuse testing General laboratory concentration.
Centrifugal Concentration System: The complete system should contain the following components.
The simplest configuration: concentrator + rotor + connecting line + vacuum pump.
Complete preparation: concentrator + rotor + diaphragm pump or high vacuum oil pump and oil filter + connecting line, + cold trap + flask + chemical trap and absorption column + vacuum control valve + vacuum pressure gauge + trolley. Feature:
1. Using Yingruen company MCU and Infineon drive module, with independent research and development control board and high torque DC brushless motor.
2. Stable and low noise, providing a comfortable laboratory environment.
3. Vacuum sample heating (optional) can be realized.
4. TFT-LCD true color display, touch screen button and physical button dual operation mode, with special button for centrifugal force display, display setting parameters and operating parameters.
5. With over temperature warning function.
6. Adopt uniform heating method, fast heating, high temperature control precision, can heat the cavity to 60 °C.
7. The centrifugal chamber is made of alloy aluminum, and the anodic electrophoresis surface treatment process can resist the corrosion of most chemical reagents and solvents.
8. Maintenance-free non-contact drive rotation system.
9. Polymethyl methacrylate transparent cover for easy monitoring of the concentration process.
10. Intelligent microprocessor control and simple and straightforward operation interface.
11. Concentration time: 1min-99h59min, can be combined with cold trap.
12. Split design, free to assemble and match, flexible and convenient.
13. Low temperature concentration to avoid loss of sample denaturation, activity degradation, oxidation. High throughput allows dozens of samples to be processed simultaneously without cross-contamination. The sample produced no foam and no loss. Safe and simple cold trap solvent recovery method. Technical Parameters:
Product model: ZLS-2
Rotor capacity: 10ml × 12 or 50ml × 6
Speed (r/min): 1500
Temperature range: room temperature ~ 60 ° C or no heating
Vacuum pump: optional
Final vacuum: 0.1 mbar
Vacuum interface: φ10mm
Cold trap: CT-6 (optional)
Power supply: AC220V/50Hz
Dimensions (L × W × H): 500 × 490 × 280mm
