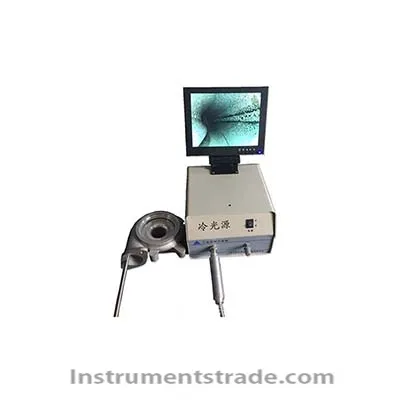

Introduction: ZKS series industrial video endoscope adopts high-definition color camera lens, combined with professionally designed and processed optical objective lens system, so that the performance of the electronic endoscope has been significantly improved compared with the previous one, with a horizontal resolution of 480 lines. The video endoscope uses high-efficiency LED solid-state light source illumination, with high illumination color temperature and small color distortion. And there is a light intensity adjustment design, which can adjust the surface illuminance of the measured object according to needs to ensure the quality of the image. Technical parameter: Field of view: 90° Viewing direction: 0° (direct view) Best working distance: 10～150 mm Resolution: 6.25 LP/mm Diameter: 6mm Insert form: metal hose Effective length: 1 m Display mode: full screen display Horizontal Resolution: 480 lines Display: 8" color LCD monitor Signal format: PAL Signal-to-noise ratio: 50 dB Minimum Illumination: 2 LUX LED light source: 12V Input power: 220V 50HZ
Introduction: ZKS series industrial video endoscope adopts high-definition color camera lens, combined with professionally designed and processed optical objective lens system, so that the performance of the electronic endoscope has been significantly improved compared with the previous one, with a horizontal resolution of 480 lines. The video endoscope uses high-efficiency LED solid-state light source illumination, with high illumination color temperature and small color distortion. And there is a light intensity adjustment design, which can adjust the surface illuminance of the measured object according to needs to ensure the quality of the image.
