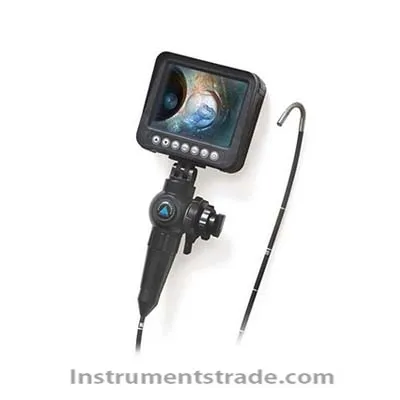

ZKS-S-GQ Handheld HD Endoscope

Product ID:WWnk024

Price: Please inquire PDF Format
Supply Ability:500 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZKS-S-GQ
    Brand NameXZZHONGLIAN
    Payment TermsTT,PAYPAL
    ZKS-S-GQ Handheld HD Endoscope
    Introduction:
    The new industrial endoscope launched by our company integrates portability, flexibility and high performance, perfectly showing clear inspection images. The probe has a certain degree of waterproof and oil-proof functions, which can meet the industrial inspection in various harsh environments. Requirements; the system integrates a high-resolution imaging coupler with the latest multi-coated objective lens combination and a high-definition color LCD screen, no cumbersome connection accessories, and simple operation.
    Features:
    1. Integrated handheld control, light weight and easy to carry;
    2. 5-inch high-brightness LCD display to ensure high image quality;
    3. Using high-definition low-light camera lens, it can also achieve ideal detection effect in low-light environment;
    4. The mechanical probe swing control is simple and flexible;
    5. Lithium battery power supply device, can work continuously for up to 8 hours;
    6. The storage device 8G TF card can realize real-time camera, photo, video, storage, playback, deletion,
    Technical parameter:
    Working outer diameter (mm): Φ13; Φ10; Φ8
    Working length (mm): 1000-10000 (length can be customized)
    Image sensor: 55-100 million pixels, auto focus, auto gain, electronic shutter, auto tracking white balance
    Field of view: ≥110°
    Best working distance (mm): 8-100
    Viewing direction: direct view/customizable side view
    The bending range of the peeping head: up, down, left and right directions ≥120°
    Sleeve design: stainless steel wire mesh, surface coating polyurethane, tungsten wire mesh optional
    Image display: 5" high-definition high-brightness LCD monitor
    Image recording: 8G, TF card storage up to 32GB
    Rated voltage: AC 220V 50Hz / DC 3.7V
    Lighting method: high-brightness LED lighting, multi-level dimming
    Integrated control: handheld, image acquisition, adjustable light source, AC and DC power supply, image output
    Ambient temperature: -20 ~60
    Relative temperature: 0% ~85%
    Working time: Built-in rechargeable lithium battery, power adapter, continuous working time ≥ 8 hours
    Corrosion resistance: allow to be attached to oil stains, 50% alkali, acid, and clean up in time after work

  • Introduction:
    The new industrial endoscope launched by our company integrates portability, flexibility and high performance, perfectly showing clear inspection images. The probe has a certain degree of waterproof and oil-proof functions, which can meet the industrial inspection in various harsh environments. Requirements; the system integrates a high-resolution imaging coupler with the latest multi-coated objective lens combination and a high-definition color LCD screen, no cumbersome connection accessories, and simple operation.
