ZKS-C ultra-fine video endoscope

Product ID:WWnk027

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZKS-C
    Brand NameXUZHOUZHONGLIAN
    Payment TermsTT,PAYPAL

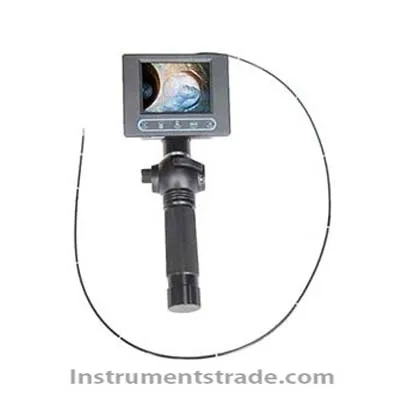

    ZKS-C ultra-fine video endoscope

    Introduction:
    The ZKS-C ultra-fine video endoscope adopts a high-definition color camera lens, which significantly improves the performance of the ultra-fine video endoscope; the combination of imported high-brightness LED light source and imported optical fiber transmission ensures the illumination of the light source; equipped with high-resolution The 3.5" color LCD monitor has the characteristics of clear image, stable performance, convenient integrated operation, removable storage of image data, and wide application range.
    Technical parameter:
    Working outer diameter (mm): Medium 2.8
    Working length (mm) : 1000
    Image sensor: 20-350,000 pixels; auto focus, auto gain, electronic shutter, auto tracking white balance
    Horizontal resolution: 470 lines
    Depth of Field (mm) : 8-100
    Viewing direction: looking straight
    Field of View: 90°
    Viewing head bending range: up, down, 120°
    Work Hose Design: Surface Coated with Polyurethane,
    Image display: 3.5" high-brightness high-definition LCD monitor
    Lighting method: high-brightness LED lighting, imported optical fiber light transmission
    Color temperature: 5000K-8300K, light intensity: 1391m/350mA,
    Battery: Lithium battery handle, working time 3 hours,
    Panel control: high-definition LCD image display, acquisition, AC and DC power supply, image input, output
    Image recording: 2GSD card storage supports up to 16GB, camera, dimming and image processing buttons
    Ambient temperature: -20~50C
    Relative temperature: 10%-85%
    Waterproof: The probe part is waterproof (to be customized)
    Working time: stable continuous working time of not less than 6 hours
    Corrosion resistance: allow to be adhered to oil stains, 50% alkali, acid, and clean up in time after work
  • Introduction:
    The ZKS-C ultra-fine video endoscope adopts a high-definition color camera lens, which significantly improves the performance of the ultra-fine video endoscope; the combination of imported high-brightness LED light source and imported optical fiber transmission ensures the illumination of the light source; equipped with high-resolution The 3.5" color LCD monitor has the characteristics of clear image, stable performance, convenient integrated operation, removable storage of image data, and wide application range.
