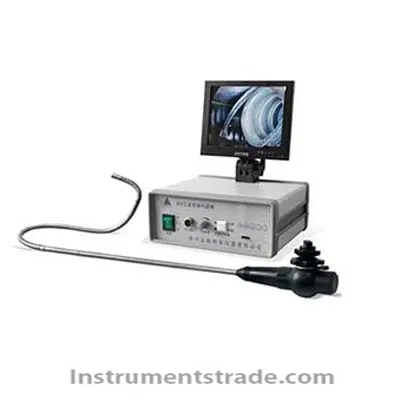

ZKN cylinder flexible endoscope Introduction: ZKN series flexible video endoscope adopts high-resolution CCD electronic coupling device and endoscope-specific objective lens system, which is mainly suitable for visual inspection of the inner surface of various gas cylinders. The probe is designed to look straight, and can swing in two directions or four directions, and the swing angle is ≥150°-180°, and the bottom and neck of the cylinder can be seen at a glance. Its unique wide viewing angle and super large bending angle can effectively inspect the equipment bottom, neck and inner surface of small-diameter and large-volume containers. It is currently the most ideal testing equipment for checking gas cylinders, power plant condensers, and connecting boxes. Features: 1. The probe head is made of imported corrugated tube and stainless steel tube, which overcomes the disadvantages of traditional soft speculum. The shortcomings of the large container itself cannot be accurately positioned, the mirror body can be arbitrarily deformed and the function is not affected. 2. The rechargeable power supply provides electrical energy, so that the instrument can easily and easily perform objective inspection on the detected object without resorting to on-site power supply. 3. Image processing: TF card (8.0G or above, maximum 16G), which can realize real-time video recording, photographing, video recording, storage, playback, deletion, detection time and date setting for the detected image; Technical parameter: Working outer diameter (mm): Φ8 Φ10 Working length (mm): 1000-1200 Flexible length (mm): 500 Image sensor: color CCD ≥30-45 million pixels, Horizontal resolution: ≥ 470 lines View direction: look straight, Field of view: ≥90° The bending range of the probe head: ≥180° up and down in 2 directions, ≥180° up and down in 4 directions Left and right ≥150° Depth of Field (mm): 8 - 100 Casing design: imported corrugated pipe and stainless steel pipe, Image display: 8″ high-brightness high-definition LCD monitor Lighting method: high brightness LED lighting Image recording: 8G TF card storage supports up to 16GB Control handle: all metal Rated voltage: AC 220V 50Hz / DC 12V Power: 5W Ambient temperature: -20 ~ 60℃ Relative temperature: 10% ~ 85% Corrosion resistance: allow to be attached to oil stains, 50% alkali, acid, and clean up in time after work Waterproof: Waterproof, oilproof Working time: stable continuous working time of not less than 8 hours
Introduction: ZKN series flexible video endoscope adopts high-resolution CCD electronic coupling device and endoscope-specific objective lens system, which is mainly suitable for visual inspection of the inner surface of various gas cylinders. The probe is designed to look straight, and can swing in two directions or four directions, and the swing angle is ≥150°-180°, and the bottom and neck of the cylinder can be seen at a glance. Its unique wide viewing angle and super large bending angle can effectively inspect the equipment bottom, neck and inner surface of small-diameter and large-volume containers. It is currently the most ideal testing equipment for checking gas cylinders, power plant condensers, and connecting boxes.
