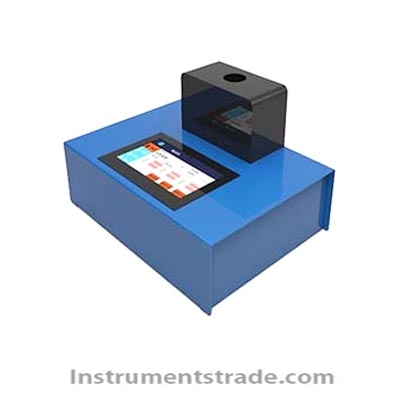

Introduction: The Micro Melting Point Apparatus perfectly combines high-precision temperature control technology and high-definition optical lens magnification technology, not only to provide users with accurate, stable and reliable test results, but also to provide users with efficient and convenient test experience. The optical lens magnification technology can easily and clearly see the whole process of sample melting. Application field: The melting point apparatus has an important position in the chemical industry and medical research. It is an essential instrument for the production of food, medicine, perfume, dyes and other organic crystal substances. Features: 1. Process 3 samples at a time; 2. Color touch screen; 3. The heating rate (0.1-10) °C/min can be set arbitrarily; 4. The fan automatically cools down. Technical parameter: Temperature range: room temperature -400℃ Resolution: 0.1℃ Heating rate: 0.1℃-10℃ (100 grades steplessly adjustable) Temperature control method: PID precise temperature control, fully enclosed design of furnace body Accuracy: ±0.4℃ (<250℃) ±0.7°C (>250°C) Repeatability: Melting point repeatability at 0.1℃/Min ±0.3℃ Display mode: TFT high-definition true color screen Data interface: RS232 Capillary tube: outer diameter φ1.6mm, inner diameter: φ1.2mm Voltage: 100V-240V 50HZ-60HZ Work rate: 100W Dimensions: 250mm*250mm*150mm Weight: 1.2kg
Introduction: The Micro Melting Point Apparatus perfectly combines high-precision temperature control technology and high-definition optical lens magnification technology, not only to provide users with accurate, stable and reliable test results, but also to provide users with efficient and convenient test experience. The optical lens magnification technology can easily and clearly see the whole process of sample melting. Application field: The melting point apparatus has an important position in the chemical industry and medical research. It is an essential instrument for the production of food, medicine, perfume, dyes and other organic crystal substances.
