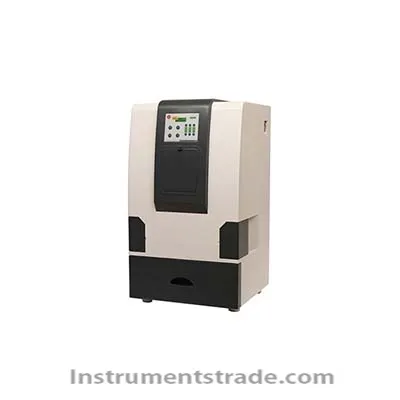

ZF-288 automatic gel imaging analysis system Introduction
ZF-288 automatic gel imaging analysis system uses the technical hardware system configuration: resolution, quality, clarity CCD camera, fully automatic computer control, degree programming, digital camera can achieve photographic imaging control through computer connection, The analysis software can realize image editing processing, automatic lane recognition, molecular weight calculation, and sample distribution calculation. Guaranteed recording of DNA/RNA gel, protein gel, blot hybridization membrane (including Western, Southern, Northern, Slot/point hybridization membrane), autoradiographic film, microplate, thin layer chromatography, chemiluminescence, etc. The sensitivity of the image at low illumination, without loss of banding, can ultimately result in peaks, molecular weight or base pairs, area, degree, position, volume or total sample size of the gel strip. The EB pollution is controlled to a large extent, and the health of the experimental operators is effectively guaranteed. It helps researchers to get electrophoresis photos and analysis results safely, correctly and quickly, to get rid of the cumbersome operation process and improve work efficiency.
It can be used for imaging and analysis of DNA/RNA gel, protein gel, imprinted hybrid membrane (including Western, Southern, Northern, Solt, dot hybrid membrane), autoradiographic film, ELISA plate, thin layer chromatography plate, etc. Processing, can perform total amount analysis, molecular weight analysis, cluster analysis, homology analysis, etc. on strips, spots and any other target areas. Feature
Multi-funcstion control panel, touch button, easy to select
Fully automatic control of zoom, focus, aperture, transmissive UV lamps and reflectors through the software or chassis panel;
Motorized lens: Professional zoom lens for easy adjustment of aperture, zoom and focus
Overhead white light source: uniformity enhances low-brightness images
Anti-UV observation window: you can observe the sample without opening the black box door
Cutting the plastic mouth: it is easy to cut the rubber without opening the black box door.
Closed black box: black box designed for gel imaging conditions
Timing protection function: no command is input within 10 minutes, all light sources are automatically turned off, and the service life is extended.
Double-sided reflection: dual-wavelength ultraviolet light source 254, 365nm
A variety of accessories are available: UV white light conversion screen, UV/Blue light conversion screen, multi-wavelength transillumination table, etc. Technical Parameters
CCD chip 2592 (H) × 1944 (V), 5 million pixels
Dynamic range 4.5OD.16bit gray scale, less than 20Pg EB-stained double-stranded DN
Image size 5.7 um x4.28 um
Lens transparent motor lens, 8~48mm
Exposure time 0.294ms~2000ms
Low sensitivity for detecting 0.01 ng EB chromosomal DNA
Detecting signal to noise ratio ≥56dB
Excitation source 300nm transmission UV, 254, 365nm reflection UV
Transmission table Ultra-bright UV transmission table, area 200×250mm, white light: 210×260mm
Filter: Standard 590nm, compatible with most fluorescent dyes such as EB, Sybr, GoldView
Software Keebio 1D Image Analysis Software
Introduction
ZF-288 automatic gel imaging analysis system uses the technical hardware system configuration: resolution, quality, clarity CCD camera, fully automatic computer control, degree programming, digital camera can achieve photographic imaging control through computer connection, The analysis software can realize image editing processing, automatic lane recognition, molecular weight calculation, and sample distribution calculation. Guaranteed recording of DNA/RNA gel, protein gel, blot hybridization membrane (including Western, Southern, Northern, Slot/point hybridization membrane), autoradiographic film, microplate, thin layer chromatography, chemiluminescence, etc. The sensitivity of the image at low illumination, without loss of banding, can ultimately result in peaks, molecular weight or base pairs, area, degree, position, volume or total sample size of the gel strip. The EB pollution is controlled to a large extent, and the health of the experimental operators is effectively guaranteed. It helps researchers to get electrophoresis photos and analysis results safely, correctly and quickly, to get rid of the cumbersome operation process and improve work efficiency.
It can be used for imaging and analysis of DNA/RNA gel, protein gel, imprinted hybrid membrane (including Western, Southern, Northern, Solt, dot hybrid membrane), autoradiographic film, ELISA plate, thin layer chromatography plate, etc. Processing, can perform total amount analysis, molecular weight analysis, cluster analysis, homology analysis, etc. on strips, spots and any other target areas.
