Introduction:
The ZF-268, an automatic gel imaging and analysis system independently developed and manufactured by our company adopts high-tech system hardware configuration: high-resolution, high-quality, high-definition CCD camera, fully automatic computer control, highly programmable, and digital camera capable of Through the connection with the computer to achieve photography imaging control, analysis software can achieve image editing processing, lane automatic identification, molecular weight calculation, sample volume distribution calculation. Guaranteed recording of DNA/RNA gels, protein gels, blotting hybridization membranes (including Western, Southern, Northern, Slot/dot blots), autoradiographic plates, microplate readers, thin-layer chromatography plates, chemical fluorescence imaging, etc. The sensitivity of the image under low illumination, without losing the band, can ultimately give the peak, molecular weight or base pair number, area, height, location, volume or total sample volume of the gel band. The greatest degree of control of EB pollution effectively protects the health of experimental operators. It helps researchers to obtain electrophoretic photographs and analysis results safely, correctly and quickly, free from tedious operations and improve work efficiency.
Automatic gel imaging analysis system ZF-268 can be used for DNA/RNA gels, protein gels, blotting hybridization membranes (including Western, Southern, Northern, Solt, spot blotting membranes), autoradiography films, microtiter plates, thin The imaging and analysis of the layer chromatogram and other images can accurately analyze total bands, spots, and any other target area, molecular weight analysis, cluster analysis, and homology analysis. Main applications: Nucleic acid detection: Various fluorescent dyes such as Ethidium bromide, SYBRTM Gold, SYBRTM Green, SYBRTM Safe, GelStarTM, Fluorescein, Texas Red Labeled DNA/RNA detection. Protein detection: Coomassie brilliant blue glue, silver burning glue, and fluorescent dyes such as SyproTM Red, SyproTM Orange, Pro-Q Diamond, DeepPurple marker glue/membrane/chip, etc. Other applications: various hybrid membranes, protein transfer membranes, colony counts in culture dishes, microtiter plates, TLC plates, etc. Features:
1. Multi-function control panel, touch buttons, easy and convenient function selection
2. Through the software or chassis panel for lens zoom, focus, aperture, transmission UV lamp and reflector lamp automatic control;
3.Scientific research CCD High-definition, high-quality images embody more detail in the image and have a stronger ability to analyze weak bands
4. Through the software or anti-ultraviolet (UV) observation window, real-time observation of the sample situation, more intuitive and more secure;
5. Timing protection function: No command is input within 10 minutes, all light sources are automatically turned off, extending the service life
6. Close the operating software: The system automatically turns off all light sources at the same time, making the experiment safer and more efficient.
7. Closed chamber design provides optimal conditions for chemiluminescence and bioluminescence
8. The unique design of double-sided tapping windows on both sides: The user cuts the glue directly in the dark box to effectively prevent EB pollution.
9. Drawer light box dual fan high-quality cooling system, pull the drawer that automatically cut off the UV light source to avoid UV damage
10. Image function: adjust the image size, brightness, grayscale, contrast, angle, stripe calibration, anti-color, crop, rotate, zoom, add text
11. Integration of analysis software and image acquisition software: Image capture, analysis of electrophoresis gels, dot blots, slot blots, and colony counts were performed at the same interface.
12. Band level and verticality adjustable: The level and verticality of the band can be manually adjusted to obtain more accurate data. Technical Parameters:
Patent number: 2008 3 0130298.3

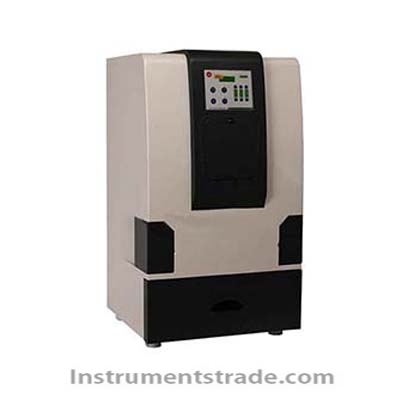

Automatic gel imaging analysis system ZF-268
CCD sensor chip: Microvision chip
Camera: Microvision high-resolution low-light digital camera
Detection signal to noise ratio: ≥56dB
Effective pixels: 2048 (H) x 1536 (V)
Resolution: 3 million pixels
Acquisition digits: moving lens, Computar 8 ~ 48mm
Aperture: F1: 1.2 automatically
Exposure time: 1ms-2s
Dynamic range: >3.6 orders of magnitude Detection sensitivity: Less than 20 Pg double-stranded DNA stained with EB
Lighting Mode: Transmittance UV, Transmitting White, Reflecting White (Optical Blue optional)
Excitation light source transmission: 300nm, white light, (optional transmission blue 200 x 120mm)
Bilateral reflection: Reflective white light (cold light) (R type: 254nm, 365nm UV reflection 200x50mm)
Filter: Standard 590nm, Compatible with most fluorescent dyes such as EB, Sybr, GoldView
Shooting area UV: 200×250mm White light: 210×260mm
Tapping observation device: observation window 60×125mm, tapping window 100×125mm
Introduction:
The ZF-268, an automatic gel imaging and analysis system independently developed and manufactured by our company adopts high-tech system hardware configuration: high-resolution, high-quality, high-definition CCD camera, fully automatic computer control, highly programmable, and digital camera capable of Through the connection with the computer to achieve photography imaging control, analysis software can achieve image editing processing, lane automatic identification, molecular weight calculation, sample volume distribution calculation. Guaranteed recording of DNA/RNA gels, protein gels, blotting hybridization membranes (including Western, Southern, Northern, Slot/dot blots), autoradiographic plates, microplate readers, thin-layer chromatography plates, chemical fluorescence imaging, etc. The sensitivity of the image under low illumination, without losing the band, can ultimately give the peak, molecular weight or base pair number, area, height, location, volume or total sample volume of the gel band. The greatest degree of control of EB pollution effectively protects the health of experimental operators. It helps researchers to obtain electrophoretic photographs and analysis results safely, correctly and quickly, free from tedious operations and improve work efficiency.
Automatic gel imaging analysis system ZF-268 can be used for DNA/RNA gels, protein gels, blotting hybridization membranes (including Western, Southern, Northern, Solt, spot blotting membranes), autoradiography films, microtiter plates, thin The imaging and analysis of the layer chromatogram and other images can accurately analyze total bands, spots, and any other target area, molecular weight analysis, cluster analysis, and homology analysis. Main applications: Nucleic acid detection: Various fluorescent dyes such as Ethidium bromide, SYBRTM Gold, SYBRTM Green, SYBRTM Safe, GelStarTM, Fluorescein, Texas Red Labeled DNA/RNA detection. Protein detection: Coomassie brilliant blue glue, silver burning glue, and fluorescent dyes such as SyproTM Red, SyproTM Orange, Pro-Q Diamond, DeepPurple marker glue/membrane/chip, etc. Other applications: various hybrid membranes, protein transfer membranes, colony counts in culture dishes, microtiter plates, TLC plates, etc.
