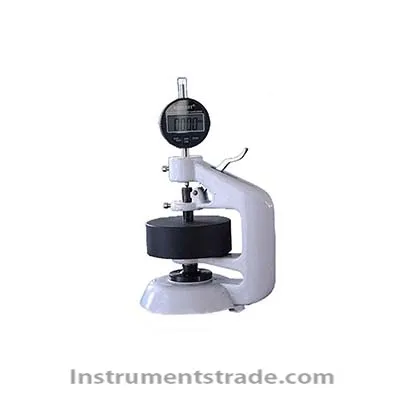

ZBH-4 paper and cardboard thickness measuring instrument
Introduction: The ZBH-4 Paper Thickness Meter is a special instrument for measuring the thickness of paper. Widely used for the thickness measurement of paper, cardboard and other sheet materials. The instrument is cardboard, which is an indispensable common instrument for enterprises and departments such as cardboard, carton production, scientific research and commodity inspection. Executive standard ISO 534 "Paper and board - Determination of thickness and lamination tightness or single layer tightness" GB/T 451.3 "Determination of paper and board thickness" Technical Parameters: Parameter item: Technical indicators Measuring range (mm): 0 to 4 Measurement accuracy (mm): 0.001 Contact pressure (kPa): 100±10 Contact diameter (mm): 16.0 ± 0.5 Measuring surface parallelism error: 0.005mm or 1% Indication error: ±0.0025mm or ±0.5% Indication repeatability error: 0.0025mm or 0.5% Instrument size (length * width * height) mm: 233x160x120 Net weight: 5.5kg
Introduction: The ZBH-4 Paper Thickness Meter is a special instrument for measuring the thickness of paper. Widely used for the thickness measurement of paper, cardboard and other sheet materials. The instrument is cardboard, which is an indispensable common instrument for enterprises and departments such as cardboard, carton production, scientific research and commodity inspection. Executive standard ISO 534 "Paper and board - Determination of thickness and lamination tightness or single layer tightness" GB/T 451.3 "Determination of paper and board thickness"
