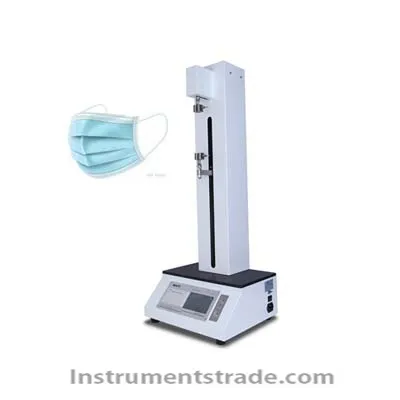

Introduction: The mask rope tensile testing machine is a new type of instrument researched and developed by our company in accordance with the requirements of the GB/T32610 standard. It is mainly used to test the breaking strength of the connection between the mask and the mask belt and the mask body. Specific test items: the breaking strength of the connection between the mask and the mask belt and the mask body. Testing requirements: According to GB/T32610-2016 daily protective mask technical specifications Internal quality index requirements: the breaking strength of the connection between the mask and the mask belt and the mask body/N≥20. Features: 1. The transmission mechanism adopts ball screw and guide shaft, and the transmission is stable and accurate. 2. Using stepping motor, low noise and precise control. 3. Adopt 5 inch TFT true color color LCD touch screen, Chinese menu. During the test, real-time display of stretching time, load tension, etc.; display of stretching curve. 4. The main board is newly designed with the latest technology, and the CPU uses a 32-bit ARM processor, which improves the processing degree of the instrument, calculates the data more accurately and quickly, and ensures the real-time performance of the measurement data. 5. It has the characteristics of automatic reset, data memory, overload protection and fault self-diagnosis. 6. Variable sample size and tensile speed: For commonly used standard size samples, the tensile test can be carried out directly at the specified speed, and the appropriate tensile speed can be set as the situation requires, and the test length and width of the sample can be changed . 7. The measurement range is wide, and the measurement range of the instrument can be changed according to user needs and configured with different dynamometers. It can be widely used in tensile test determination of various paper, toilet paper, plastic film and other materials. 8. Using thermal printer core, no need to use ink and ribbon, no noise during work, fast printing speed, etc. 9. This instrument is equipped with a standard RS232 interface, which can be used with computer software for communication (purchased separately). Technical Parameters: Power supply voltage: AC(100～240)V, (50/60)Hz Working environment: temperature (10～35)℃, relative humidity ≤85% Measuring range: (0～1000)N Display resolution: 0.1N (YT-L1000) Indication error: ±1% Working stroke: (35～300)mm (optional adjustment) Stretching speed: (1～480)mm/min (can be adjusted arbitrarily) Printing: Thermal printer Communication interface: RS232 Dimensions: 400×300×800 mm Net weight of the instrument: ≤35kg
Introduction: The mask rope tensile testing machine is a new type of instrument researched and developed by our company in accordance with the requirements of the GB/T32610 standard. It is mainly used to test the breaking strength of the connection between the mask and the mask belt and the mask body. Specific test items: the breaking strength of the connection between the mask and the mask belt and the mask body. Testing requirements: According to GB/T32610-2016 daily protective mask technical specifications Internal quality index requirements: the breaking strength of the connection between the mask and the mask belt and the mask body/N≥20.
