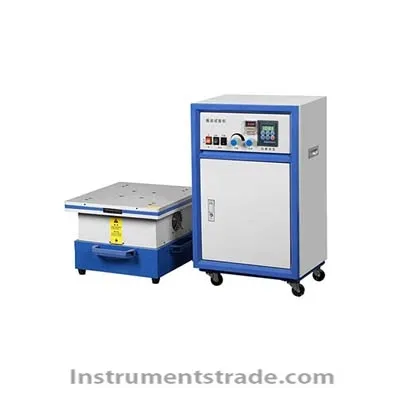

Introduction: Electromagnetic suction vibration table is a variety of vibration environment encountered in the simulation of product manufacturing, assembly, transportation, use and operation, to achieve the sine wave, frequency modulation, frequency sweep, programmable, frequency multiplication, logarithm required for vibration test. , Maximum Acceleration, Amplitude Modulation, Time Control All functions are used to identify whether the product can withstand the vibration of various complex environments. It is applicable to the research, development, quality control, and manufacturing of electronics, electromechanical, automotive, toy, packaging and other industries. Improve product quality and reliability, and indispensable high-tech equipment in high-quality areas. Full-function computer control of the equipment, simple fixed acceleration/definite amplitude.Through continuous trouble-free operation test, stable performance and reliable quality. Features: 1 The use of the most advanced programmable technology, you can set the program, multi-sweep frequency can work at the same time 2 has a single point, segment, multi-segment timing, count down function 3 imported frequency controller, digital (or touch screen) control and display frequency, PID adjustment function, make the equipment work more stable and reliable 4 The control parameters are synchronized and displayed in real time without manual intervention. 5 Accurately achieve controllable effects and predictive control graphs (connecting computer functions) 6 precision design and manufacturing, integrated vertical table body, beautiful appearance, ultra-quiet work 7 The base of the machine adopts a vibration-isolating device, which is easy to install and runs smoothly. No need to install the fixing screws 8Embedded amplitude prediction program and amplitude modulation easy 9 four-point synchronous excitation, uniform vibration on the table 10 steplessadjustment of amplitude, fixed frequency and sweep frequency operation function to meet various test requirements in different industries 11 Increase the anti-interference circuit to solve the interference of the control circuit due to the strong electromagnetic field 12 Increase the working time setter to achieve better test requirements for test products Technical Parameters Model Number: YNK/VT-50 Table size (depth × width × height): 500×500×20 mm Dimensions (depth × width × height) : 500×500×650 mm Total power: 1.5KW Power supply: 220V±10%, 50Hz±1 ground wire, protective earthing resistance less than 4Ω Function: Sine wave, frequency modulation, sweep frequency, programmable, amplitude modulation, maximum acceleration, time control Vibration frequency: 1～400HZ (or 600) arbitrary setting Precision 0.1HZ Vibration direction: vertical, horizontal (or vertical + horizontal) Maximum test load: 100KG Isolated magnetic field function: The magnesium alloy panel can completely isolate the magnetic field (special instructions) FM function: FM at any frequency in the frequency range Sweep function 5-400Hz: (up frequency/down frequency/time range) can be arbitrarily set true standard sweep back and forth Programmable function: Can be set arbitrarily (frequency/time) No-load maximum amplitude: 0 ~ 5mm (adjustable range mmp-p, adjustable unreadable) Acceleration: 15g (adjustable and unreadable) Vibration waveform: Sine wave Time Control: At any time (in seconds) Measuring instrument: To measure vibration and acceleration data (measured separately) Non-standard: special table size special test load special amplitude call advice custom
Introduction: Electromagnetic suction vibration table is a variety of vibration environment encountered in the simulation of product manufacturing, assembly, transportation, use and operation, to achieve the sine wave, frequency modulation, frequency sweep, programmable, frequency multiplication, logarithm required for vibration test. , Maximum Acceleration, Amplitude Modulation, Time Control All functions are used to identify whether the product can withstand the vibration of various complex environments. It is applicable to the research, development, quality control, and manufacturing of electronics, electromechanical, automotive, toy, packaging and other industries. Improve product quality and reliability, and indispensable high-tech equipment in high-quality areas. Full-function computer control of the equipment, simple fixed acceleration/definite amplitude.Through continuous trouble-free operation test, stable performance and reliable quality.
