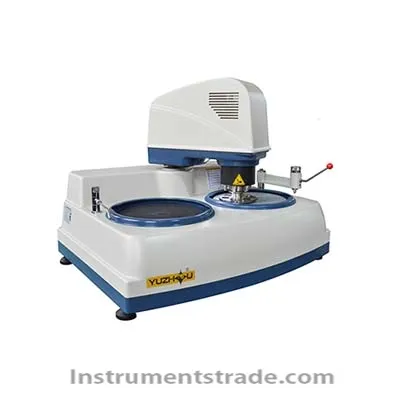

YMPZ-2B-300 desktop grinding and polishing machine Introduction: The YMPZ-2B-300 desktop grinding and polishing integrated machine is a grinding and polishing equipment controlled by a microcontroller. It has a dual disc independent design, and the left disc adopts a magnetic disc design, supporting quick disc replacement. The surface of the chassis and pad is treated with Teflon, and there is no residue of sandpaper polishing cloth adhesion; The right disc adopts a grinding wheel system to achieve automatic rough grinding of the sample. The body is made of ABS material and is integrally formed, with a novel and beautiful appearance, corrosion resistance, and durability. The grinding disc is made of alloy aluminum die-casting, which is resistant to oxidation, does not deform, can be infinitely variable speed, and supports forward and reverse rotation. The grinding head supports both center pressure and single point pneumatic modes, using an imported pressure regulating valve for stable pressure. The unique running and fitting design between the grinding head sample disc and the grinding disc effectively improves the quality of grinding and polishing. Adopting high-definition LCD touch screen control and display, the operation is simple, clear and intuitive. The motor is a servo motor with a long service life and ultra quiet operation. The strong motor power brings an efficient grinding and polishing experience. The precision cast aluminum support chassis design ensures precise rotational balance; The spindle is designed to be leak proof, effectively protecting the bearings. The automatic grinding system of this machine can effectively replace manual grinding and polishing processes, achieving integrated functions from coarse grinding to fine grinding to polishing. The number of sample holders can reach 6, greatly saving labor, improving grinding and polishing quality and sample preparation efficiency. It is an ideal choice for new automatic metallographic sample preparation equipment. characteristic: 1. There are two operating modes: center pressure and single point pressure, and the most suitable mode can be selected according to the working conditions 2. The sample clamp can be quickly disassembled and converted, and can flexibly use clamps of different diameters 3. Magnetic disc design, supports quick disc replacement, with PTFE coated backing plate and no residue left after sandpaper and cloth replacement 4. The unique adaptive design of the grinding disc ensures a perfect fit and correction between the sample and the grinding disc, effectively solving the multi-faceted phenomenon, Ensure consistent grinding surface 5. The whole machine adopts high-definition LCD touch screen control and display, which is easy to operate, clear and intuitive 6. Automatic grinding system, capable of timing and speed control, with automatic opening and closing function of the water system, effectively replacing manual grinding and polishing 7. The grinding head electromagnetic lock has an automatic locking function, which is safe and convenient 8. Dual disc design, independent operation, integrated operation of sample grinding and polishing 9. Equipped with diamond needles, the grinding wheel can be trimmed and leveled at any time 10. It can store more than ten grinding and polishing programs, and set different parameters for different samples 11. Half rotating design of sample chuck, combined with inner lighting system, facilitates the retrieval and placement of samples Technical parameters: Model: YMPZ-2B-300 Grinding disc diameter: 300mm Sandpaper polishing diameter: 300mm Grinding wheel specifications: 300mm, 80 # or 120# Grinding disc speed: stepless speed regulation 100~1000r/min Grinding wheel steering: both clockwise and counterclockwise, switchable Grinding disc motor: servo motor, 220V, 1.5kW Grinding head motor: servo motor, 220V, 400W Grinding head speed: stepless speed regulation 20~120r/min Timed adjustable time: 0~99min Number of sample clamps: 6 Sample clamping specification: any specification of Φ 25mm, Φ 30mm, Φ 40mm (Special specifications can be customized) Pressure method: single point pneumatic pressure and center pneumatic pressure Single point pressurization pressure: 0~50N Central pressurization pressure: 0~160N Display and operation: 7-inch high-definition LCD touch screen, grinding head automatic locking function, automatic water outlet function Input power supply single-phase 220V, 50Hz, 12A Dimensions 1200 × 800 × 760mm Net weight 134kg
Introduction: The YMPZ-2B-300 desktop grinding and polishing integrated machine is a grinding and polishing equipment controlled by a microcontroller. It has a dual disc independent design, and the left disc adopts a magnetic disc design, supporting quick disc replacement. The surface of the chassis and pad is treated with Teflon, and there is no residue of sandpaper polishing cloth adhesion; The right disc adopts a grinding wheel system to achieve automatic rough grinding of the sample. The body is made of ABS material and is integrally formed, with a novel and beautiful appearance, corrosion resistance, and durability. The grinding disc is made of alloy aluminum die-casting, which is resistant to oxidation, does not deform, can be infinitely variable speed, and supports forward and reverse rotation. The grinding head supports both center pressure and single point pneumatic modes, using an imported pressure regulating valve for stable pressure. The unique running and fitting design between the grinding head sample disc and the grinding disc effectively improves the quality of grinding and polishing. Adopting high-definition LCD touch screen control and display, the operation is simple, clear and intuitive. The motor is a servo motor with a long service life and ultra quiet operation. The strong motor power brings an efficient grinding and polishing experience. The precision cast aluminum support chassis design ensures precise rotational balance; The spindle is designed to be leak proof, effectively protecting the bearings. The automatic grinding system of this machine can effectively replace manual grinding and polishing processes, achieving integrated functions from coarse grinding to fine grinding to polishing. The number of sample holders can reach 6, greatly saving labor, improving grinding and polishing quality and sample preparation efficiency. It is an ideal choice for new automatic metallographic sample preparation equipment.
