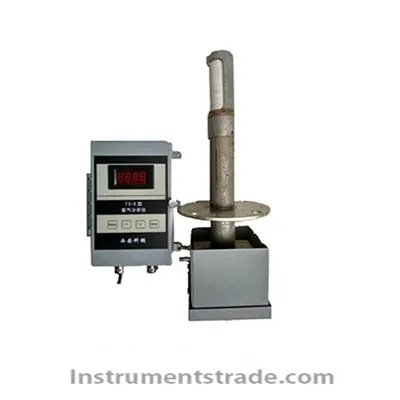

YMFX-6 zirconia oxygen analyzer Introduction: The FX-6 zirconia oxygen analyzer consists of a zirconia probe (primary instrument) and a display instrument (secondary instrument). The zirconia probe housing is made of high temperature, corrosion resistant stainless steel. It is not necessary to add an air pump, and the reference gas can convect itself. It also has a standard gas interface, which can be calibrated and calibrated with standard gas during field operation. The probe zirconium tube can be easily removed and replaced. The FX-6 oxygen transmitter has simple structure, standard installation specifications, reasonable circuit design, advanced process quality, stable and reliable instrument performance and convenient debugging. Technical Parameters: Measuring range: 0.1PPm ~ 25% Accuracy: ≤±2%F.S Repeatability: ≤±1%F.S Stability: Zero drift: ≤ ± 1% F. S / 7d Range drift: ≤±1%F.S/7d Response time: T90 ≤ 5 seconds Working power: 220VAC ± 10%, 50Hz ± 5% Signal output: 4-20mA Probe length: 600, 800, 1000••••mm
Introduction: The FX-6 zirconia oxygen analyzer consists of a zirconia probe (primary instrument) and a display instrument (secondary instrument). The zirconia probe housing is made of high temperature, corrosion resistant stainless steel. It is not necessary to add an air pump, and the reference gas can convect itself. It also has a standard gas interface, which can be calibrated and calibrated with standard gas during field operation. The probe zirconium tube can be easily removed and replaced. The FX-6 oxygen transmitter has simple structure, standard installation specifications, reasonable circuit design, advanced process quality, stable and reliable instrument performance and convenient debugging.
