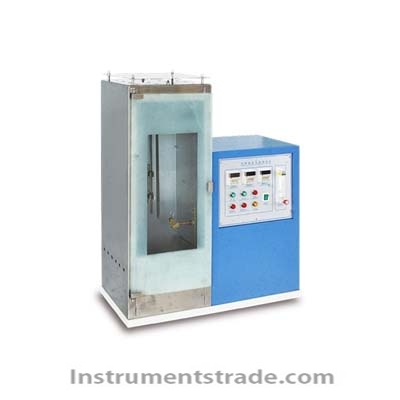

YG (L) 815A fabric flame retardant performance tester (vertical method) Introduction: The instrument is suitable for the determination of vertical burning performance of garment fabrics, decorative fabrics and tent fabrics with flame retardant requirements. Relevant standards: GB/T5455-97 "Determination of flame retardant properties of textile fabrics" Technical Parameters: 1. Continued delay range: 0-999.9s resolution 0.1s 2, the delay time range: 0-999.9s resolution 0.1s 3, the working temperature display range of the box: 0-99 ° C resolution 1 ° C 4. Burning time: 12s 5. Igniter nozzle inner diameter: 11mm 6. Distance between the top of the igniter and the sample: 17mm, inclination of 25° 7. Dimensions: 750mm × 360mm × 940mm (L × W × H) 8, power: Ac220V 50Hz
Introduction: The instrument is suitable for the determination of vertical burning performance of garment fabrics, decorative fabrics and tent fabrics with flame retardant requirements. Relevant standards: GB/T5455-97 "Determination of flame retardant properties of textile fabrics"
