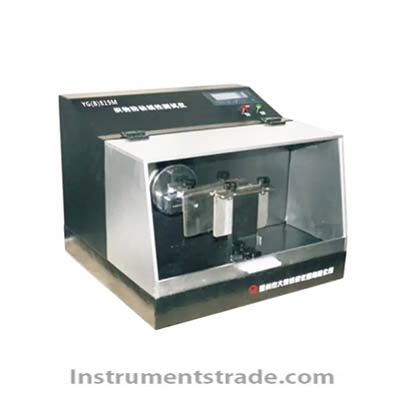

Introduction:
Scope: Friction test fabric to prevent feathers, down, wool from the surface of the drilling performance. Related standards: GB / T12705.1-2009 "Test methods for fabric anti-drilling cashmere - Part 1: Friction" GB / T14272-2011 "Down clothing" BS EN 12132-1, etc. Features:
1, fast stainless steel holder, holding the sample convenient, not to hurt the hand
2, pause positioning, to ensure that the specimen is not skewed clamping
3, can be used in parallel Technical Parameters:
1. Internal friction room size: 30 × 15 × 18mm
2. Distance between two gripper: 44 ± 1mm (40-70mm adjustable)
3, the sample size: (420 ± 10) × (140 ± 5) mm
4, the effective size of the sample bag: about 170 × 120mm
5. Drive wheel speed: 135r / min
6. The maximum number of operations set: 1-99999 times
5. Power: AC 220V ± 10% 50Hz 120W
7, Dimensions: 60 × 45 × 30
8, Weight: 20Kg
Introduction:
Scope: Friction test fabric to prevent feathers, down, wool from the surface of the drilling performance. Related standards: GB / T12705.1-2009 "Test methods for fabric anti-drilling cashmere - Part 1: Friction" GB / T14272-2011 "Down clothing" BS EN 12132-1, etc.
