Features:
1. Chinese color display
2. Shuttle and key operation
3 arc detection decision
4. Voltage rise time adjustable
5. Pressure, insulation can be automatically connected to the test
6. Group User Settings Save
7.U disk test data record acquisition function Technical Parameters:

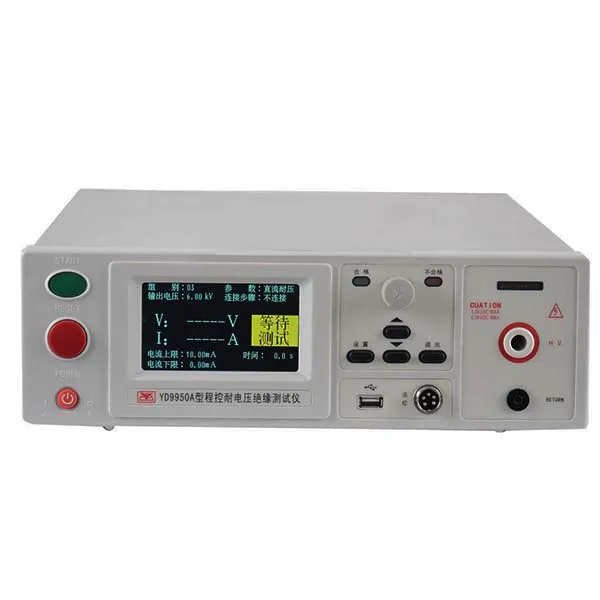

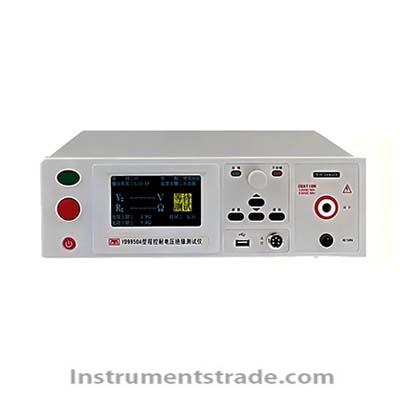

Model: YD9950A
Output voltage range: 0.5kV-6kV (DC) 0.5kV-6kV (DC)
Voltage resolution: 10V
Voltage accuracy: 3%
Voltage frequency: 50Hz, 60Hz optional
Maximum output current: 20mA (AC)
Current upper and lower limit setting: 0.01mA-20mA (AC) 0.01mA-10mA (DC)
Current resolution: 0.01mA
Current accuracy: 3%
Voltage rise time setting: 0.1s-999.9s 0.1s / step
Arc detection function: choose 1-9 level
Resistance test range: 1MΩ-2000MΩ
Resistance accuracy: 1MΩ-999MΩ: 5%, 1000MΩ-2000MΩ: 10%
Upper and lower resistance setting: 1MΩ-2000MΩ
Measurement time setting: 0.1s-999s
Communication Interface: PLC Interface, RS232C (optional), U disk storage (optional)
Working temperature and humidity: 0 ℃ -40 ℃, ≤ 85% RH
Power: 198V-242V AC, 47.5Hz-52.5Hz
Overall dimensions: 350 × 110 × 400 (mm)
Weight: 9kg
Features:
1. Chinese color display
2. Shuttle and key operation
3 arc detection decision
4. Voltage rise time adjustable
5. Pressure, insulation can be automatically connected to the test
6. Group User Settings Save
7.U disk test data record acquisition function
