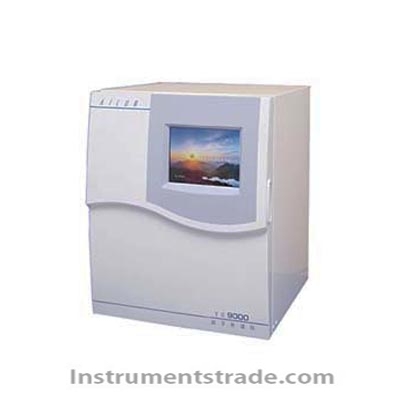

YC9000 Intelligent Ion Chromatograph Introduction
YC9000 intelligent ion chromatograph adopts functional modular design and fully integrates intelligent MT technology. It is an intelligent ion chromatograph with high integration and intelligence. It can automatically identify, automatically set optimal working parameters, and automatically save usage records. And traceability, and can achieve simultaneous detection of dual channels and multiple detectors. The advantages of the instrument in terms of integration, user-friendly design, cost performance, etc. are easier to be accepted by users, and its application fields are more extensive, including military, military, nuclear industry, scientific research institutes, petrochemicals, hydrogeology, environmental protection, quality inspection , Health and epidemic prevention, power electronics and so on. Features
It adopts new titanium alloy material with anti-signal interference, anti-noise and anti-corrosion. All sections are treated with high-quality, integrated machine design, adopting movable structure, easy to disassemble, and convenient for repair, maintenance and maintenance of water, electricity and gas pipelines.
The high-resolution large-screen liquid crystal display adopts a functional modular design, and the instrument can be monitored in real time. Under the premise of ensuring accuracy and reliability, different detection modules can be configured according to different detection needs, which is more flexible, convenient and beautiful.
The new integrated structure integrates a high-pressure advection pump, a six-port injection valve, an anion chromatography column, a suppressor, and a detector, which shortens the connection pipeline, which makes the instrument highly sensitive, has low baseline noise and low baseline drift, and has detection limits. Greater improvement. The original imported PEEK material has the functions of automatic signal acquisition and continuous flow.
Multifunctional positive pressure exhaust device, built-in fast gas extraction device, can more completely eliminate the influence of CO2 generated in eluent on baseline and instrument stability. This device can also improve column efficiency and resolution. The built-in on-line gas-liquid separation device can continuously and automatically discharge the dissolved gas in the mobile phase, and realize the constant temperature suppression function. The mobile phase does not need to perform heat exchange, and the organic combination of the conductance cell and the suppressor is realized.
All parts in contact with the sample and eluent are made of PEEK or PTFE material. They are resistant to high pressure, acid and alkali, organic solvents, and free of metal contamination. They are especially suitable for sensitive biological sample analysis, while ensuring that the mobile phase has good stability And obtain lower detection limits. No additional gas is required to operate the system.
The electronic version of the operation demonstration screen can effectively realize the automatic control of the data. It has a data transmission function. It can collect single or multiple channels. It can simultaneously complete the collection and processing of anion and cation data. Automatically identify solvent peaks, tailing peaks, sawtooth peaks, front and back shoulder peaks. It can display spectrum, retention time, quantitative calculation of peak height, peak area and concentration, and make calibration curve. Technical Parameters
Ion chromatography pump
High-performance / low-pulse double plunger pump with chemically inert non-metallic non-damping pump head and PEEK tubing. Suitable for eluent with pH 0-14 and reversed-phase organic solvent. With leak monitoring and pressure alarm automatic alarm function.
Anion suppressor
Automatic electrolytic continuous regeneration membrane suppressor, no need to add sulfuric acid for alternate regeneration, uninterrupted use, simple operation and long life.
Chromatography analysis system
Equipped with original imported high-efficiency high-capacity anion chromatography column and guard column, using polymer matrix, one-time injection analysis and detection of conventional anions F-, Cl-, NO2-, NO3-, SO42-, Br-, PO43-, ClO2-, BrO3-, ClO3-, etc .; drinking water and disinfection by-products: F-, Cl-, NO3-, SO42-, ClO2-, BrO3-, ClO3-, etc .; working range of resistance to pH 0-14; tolerable Pressures above 3000 psi, 100% compatible with reversed-phase reagents, strong acid and alkali eluent can be used.
Pulse Rotary Sampler
Features: It has the characteristics of accurate positioning, accurate aspiration volume, good repeatability, and high accuracy.
Loop: 5mL loading method
Sampling bottles: 40, 50, 120 sampling bottles are available;
Cleaning: It has the function of automatic cleaning of sample residues, and there is no limit on the number of cleanings.
Positive pressure exhaust device
It can continuously and automatically exhaust the dissolved gas in the mobile phase, completely eliminating the unstable factors in the mobile phase, thereby reducing baseline drift and noise.
Built-in fast gas extraction device
It can remove CO2 in the mobile phase more thoroughly and quickly, and affect the baseline and instrument stability. The device can also improve column efficiency and resolution.
Cylindrical nano-scale mobile phase filtrater
Original imported parts: E.I. DuPont de Nemours & Co., Inc.
Data processing system
Features: Special data working software for ion chromatograph, powerful, simplified data processing steps, and can automatically perform fast data collection and post-processing.
Software: Install genuine Windows7 / XP system software and chromatograph system control software and analysis application software.
Data processing: with automatic formatting function for data processing and complete system monitoring function, monitoring and collecting pump pressure changes, providing timely analysis of condition parameters and analysis results, analysis methods, chromatogram integration and analysis reports can be prepared.
