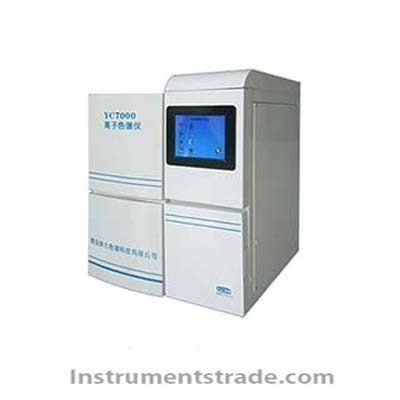

YC7000 ion chromatograph Introduction
YC7000 ion chromatograph is a new type of ion chromatograph, which adopts temperature-controlled TP detector, has excellent temperature stability, adopts anti-signal, anti-interference new material shell shielding, and has a lower and more stable baseline. Not only that, the built-in smart chip can also store standard spectra, which can be directly used for software verification and training.
This instrument is equipped with three different injection modes, manual injection, electric injection, and automatic injection. The three can be freely switched to provide users with an automated and user-friendly instrument application experience. At the same time, different detectors such as electrical conductivity detectors, ultraviolet detectors, and electrochemical detectors can be selected. The application fields are more extensive, and can be used in solid waste, electrolytic plating industry, military and military, nuclear industry, sewage treatment, environmental monitoring, Food and medicine, hydrogeology, sanitation and epidemic prevention, etc. Features
Adopting high-definition color touch screen, real-time display of parameters, pressure, flow rate range and comprehensive operation, functional module design, different detectors can be selected according to different detection needs of users.
It can realize automatic degassing of the eluent and flushing of the flow path, eliminating manual maintenance. It has a healthy flushing and automatic alarm for overpressure and automatic stop of the pump to protect itself.
Low background conductance, low noise and stable baseline, no acid change, online automatic regeneration, uninterrupted use, simple operation, long life, meanwhile, the suppressor and conductance cell are integrated to effectively shorten the pipeline and reduce the flow path, thus Improved detection sensitivity and accuracy.
With automatic warm-up function before starting, no need to wait for startup, automatic baseline calibration.
Trace level detection of PPb-level low-concentration samples is possible. It has two detection modes: regular detection and high-precision detection.
Imported temperature sensor, small electromagnetic interference, fast heating speed, automatic temperature adjustment function.
It can be shared with software such as Microsoft Excel and Word; the data spectrum can be shared with image software such as Photoshop and CorelDRAW. Equipped with an excellent 24-bit analog-to-digital conversion device, it provides high-resolution and high-sensitivity detection. With automatic format function for data processing: analysis methods, chromatogram integration, and analysis reports can be prepared, and instrument-related data and operating conditions can be traced to facilitate troubleshooting. Technical Parameters
Integrated machine, digital control, large-screen LCD display; full-screen display of working parameters such as conductance, current, flow rate, range, pressure; user-friendly operation, the instrument can be monitored in real time.
Ion chromatography pump
High-pressure chromatographic infusion pump: High-pressure chromatographic infusion pump adopts PEEK pump head, which has the function of electronic suppression without pulse, fluctuation suppression: plunger stroke adjustment and electronic suppression. PEEK pipeline: suitable for eluent with pH 0 to 14 and reversed-phase organic solvent.
Host built-in UV detector runs MEO
Flow system
Six-way injection valve, the entire flow path is made of imported PEEK material that is resistant to pressure, acid and alkali, and corrosion
Chromatography analysis system
High-performance anion chromatography column, which meets the analysis of F-, Cl-, NO3-, SO42-, PO43- and other anions in the sample. It is used for eluents and reversed-phase organic solvents at pH 0-14.
Constant temperature suppression conductivity cell
It has a constant temperature suppression function, and the mobile phase does not need to perform heat exchange. It can flow into the conductivity detector with the shortest pipeline, which reduces the flow path and improves the detection sensitivity.
Chemical suppressor
Adopt continuous automatic regeneration membrane chemical suppressor, no need to change the acid, continuous automatic regeneration, uninterrupted use, simple operation, long life; constant current source current 0 ～ 160mA adjustable, 1mA increment; at the same time the conductivity cell and suppressor Together, they reduce environmental impact and reduce baseline noise and drift.
Positive pressure exhaust device
It can continuously and automatically exhaust the dissolved gas in the mobile phase, completely eliminating the unstable factors in the mobile phase, thereby reducing baseline drift and noise.
Cylindrical nano-scale mobile phase filtrater
Original imported parts: E.I. DuPont de Nemours & Co., Inc.
WIN-LAN CHDP SYSTEM
Dedicated data working software: powerful, simplified data processing steps, automatic identification of solvent peaks, tailing peaks, sawtooth peaks, front and back shoulder peaks.
Genuine Windows7 / XP system software and chromatograph system control software and analysis application software: the results can be shared with Microsoft Excel, Word and other software; the data spectrum can be shared with Photoshop, CorelDRAW and other image software.
The integral sensitivity is 1 microvolt · second, the minimum resolution is 0.1 microvolt, and the minimum peak width is 0.1 second.
With data processing automatic format function: analysis methods, chromatogram integration and analysis reports can be prepared.
