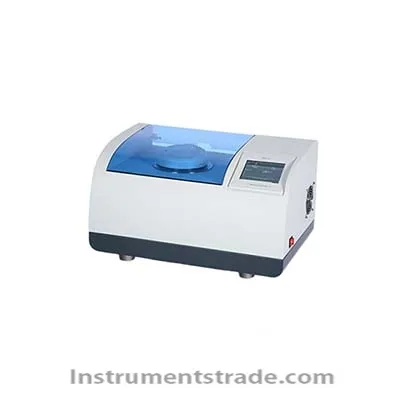

Y110 oxygen transmission rate tester Introduction
The Y110 oxygen permeability meter is used to determine the oxygen transmission rate (amount) of a film or sheet material.
Applicable to: 1) plastic film, composite film, aluminum foil, aluminized film, etc.;
2) various sheets, plates, rubber, ceramics, etc.;
3) packaging containers, such as bottles, bags, bowls, etc.;
4) Extended applications, such as solar back panels, LCD screens, contact lenses, medical patches, etc.
5) Widely used in quality inspection, drug inspection, scientific research, packaging, film, food, pharmaceutical, daily chemical, electronics and other industries.
Execution standards: GB/T19789-2005, YBB00082003-2015, ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1307, ISO 15105-2, DIN 53380-3, JIS K-7126-B Features
Accurate and reliable data
Our company has the approval and issued by the General Administration of Quality Supervision, Inspection and Quarantine: the oxygen permeability tester "National Standard Substances Rating Certificate" and the "National Standards" manufacturing measurement instrument license (GBW (E) 130497 / 8). The instrument is calibrated and verified by national standard materials to ensure the accuracy, versatility and authority of the test data.
Easy to operate
The host is equipped with a liquid crystal display, a Windows-style operation interface, real-time display of test data and working status; mouse operation, easy to use.
Professional software support, the software interface is simple and clear, easy to operate, and the test process can be flexibly set.
Fully automatic operation, one-button test, automatic judgment, automatic shutdown.
Real-time display of four curves of transmittance, oxygen concentration, temperature, and humidity; the curve can be scaled and moved at will. The curve supports preview hiding and supports background database query.
Professional test report, report automatically generated, can export files in Office, PDF and other formats.
Technological advancement
Temperature control: It adopts international advanced electromagnetic program step temperature control technology to automatically heat up and cool down; no external temperature control device is needed, avoiding the disadvantages of large size and faults of external temperature control device; high temperature control precision is accurate to 0.1 °C.
Humidity control: humidity control with dual airflow (dry gas and moisture), accurate to 1% RH, stable humidity.
The ARM control system with cutting-edge technology can be tested independently from the computer.
High test efficiency
With a measurement accuracy of 0.001 cm3/(m2·24h), it can measure high barrier materials such as aluminum foil.
An adaptor attachment can be added to measure the oxygen permeation of containers such as bottles, bags, and bowls.
Scalable, plus mask test range up to scalable test range up to 260000 cm3 / (m2 · 24h)
Rights management and data tracking
The software is designed according to the requirements of the new GMP appendix computerized system.
A username and password are required to log in to the workstation.
Users are divided into various levels such as operators and administrators (such as administrators, operators, observers, etc. but not limited to these levels).
Administrators can make permission adjustments at various levels; such as adding and subtracting a certain level of system control items.
With audit trail function (system audit trail, project run audit trail, method audit trail), each data change is recorded; the security and integrity of the test data is guaranteed.
Measurement and verification
The instrument supports standard film and standard gas to verify and calibrate the calibration. The operation is simple. The user only needs to use the standard substance for routine test operation, and then input the measured data into the instrument interface to complete the calibration.
The instrument is stable and reliable, easy to repair
Oxygen sensor with high precision, good stability and long-term operation
Sensor over-range automatic protection to avoid damage to important sensors when the instrument fails
Functional modular design for easy maintenance. Technical parameters
Test range: 0.02~16500 cm3/(m2·24h) (maximum measurable through mask of 260000 cm3/m2·24h)
Test accuracy: 0.001 cm3/(m2·24h)
Temperature control range: 15~45°C
Temperature control accuracy: ±0.1 °C
Controlled humidity range: 30~90% RH, 100% RH
Control humidity accuracy: ±1% RH
Transmissive area: 50.24 cm2 (with adapters supported to a minimum of 0.785 cm2)
Sample size: Φ100 mm
Sample thickness: ≤3mm
Number of samples: 1 piece
Carrier gas pressure: ≥0.1MPa
Air source interface: Φ3mm air pipe
Carrier gas interface: 1/8 inch
Dimensions: 600 × 400 × 330mm
Weight: 80kg
Power: 750W
Power supply: AC 220V, 50Hz
