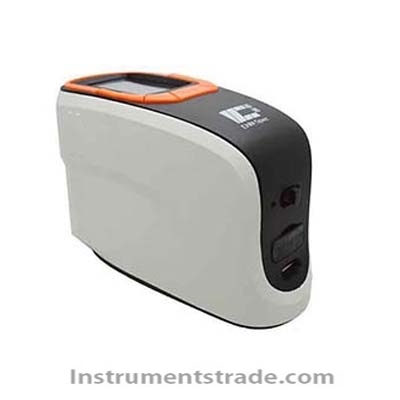

XZB-CS660 spectrophotometer for Color measurement

Product ID:CLQTgxjl013

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberXZB-CS660
    Brand NameSZSXZBYQSB
    Payment TermsT/T, paypal
    Brief introduction:
    The first spectrophotometric technology platform color measuring instrument in China has integrated a number of technical characteristics and extended the boundary of color quality control in the field of production.
    It can be used for laboratory, factory or field operation, enough to achieve the best color measurement in almost all application areas of quality control;
    Lower price, to obtain high-performance spectroscopic color management tools, to meet the urgent needs of small and medium enterprises for high-end instruments;
    The built-in software contains all the necessary color equation, standard light source suitable for different tasks, and a large number of specific industry and application indicators;
    The operating system supports bilingual interface in both Chinese and English, and color spectrum provides customized service of interface language according to the actual needs of customers.
    The professional horizontal design, does not contain any moving parts, to avoid the handheld operation of the instrument shaking, let the test more accurate
    USB data transmission, PC software for upper computer operation, so that your color control more free
    Large storage space: it can store 40,000 pieces of test data
    - SCI and SCE measurements can be carried out simultaneously, and SCI/SCE data can be displayed through the LCD panel
    The powder test accessories can be added to easily realize the color measurement of powder, particles and other tested samples
    Product features:
    The first spectrometer in China
    Obtained the domestic measurement certification
    Large capacity storage space
    Large full-color true color display
    New and fashionable appearance design based on ergonomics
    Simple operation mode, simple operation interface
    Reservation of seat plate design, easy to cope with instrument test alignment
    Use LED light source, longer service life
    Low power consumption design, large capacity rechargeable lithium battery configuration
    SCI (including specular reflection) and SCE (eliminating specular reflection) can be measured simultaneously.
    USB data transmission, PC software control color data
    Can be connected to a micro printer for printing
    Technical parameters:
    Product model XZB-CS660A
    Lighting system D /8(scattered light source, 8-degree observation Angle) SCS optical engine (spectrometer integrated system), ETC (real-time calibration technology), equipped with SCI (including specular reflection component) /SCE (excluding specular reflection component) synchronous measurement function.(CIE no.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c)
    Integral ball size Φ 40 mm, Avian 3-d diffuse surface coating
    Lighting source CLEDs(full band balanced Led light source)
    sensors Dual light path array sensor
    Measuring wavelength range 400-700nm
    Wavelength Interval 10nm
    Spectral half-bandwidth: 5nm
    Reflectivity measurement range 0-200%
    Reflectivity resolution: 0.01%
    Observer Angle 2°/10°
    Measuring the light source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,
    F11,F12,DLF,TL83,TL84,NBF,U30,CWF
    According to Spectrogram/data, sample chromaticity value, chromaticity difference value/graph, qualified/unqualified result, color deviation, color simulation, display measurement area, historical data color simulation, manual input of standard sample, generate test report
    Measurement interval About 2 seconds
    Measuring time 0.5 seconds
    Measure the diameter Φ8mm/4mm
    Color space CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy, reflectivity,Hunterlab,Munsell MI,CMYK
    Color difference formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555, Color classification
    Other chromaticity index WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313,CIE,Ganz), Isochromatic spectral index Milm, color fastness to adhesion, color fastness,ISO brightness,8 glossiness,A density,T density
    Repetitive Spectral reflectivity: standard deviation within 0.08%
    Chroma value: Δ E * ab 0.015 (adjusted, in order to measure the whiteboard 30 times interval of 5 s standard deviation), the maximum value of 0.03
    Battery Repeatable charging, continuous measurement 20,000 times, 7.4v /6000mAh
    Interface USB, bluetooth
    Store the data 40,000 pieces of test data
    Life of lighting source Three million times in 10 years
    A difference between Δ E * ab within 0.2 (BCRA series dozen of color plate measuring average)
    Size 181*73*112mm(L*W*H)
    Weight About 550g (excluding battery)
    Display Panchromatic true color screen
    Operating Temperature range 0 ~ 45 , relative humidity of 80% or less (under 35 ° C), without condensation
    Storage temperature range -25 ° C to 55 ° C, relative humidity of 80% or less (under 35 ° C), without condensation
    Standard accessories Power adapter, lithium battery, instruction manual, color management software, driver software, electronic version of instruction manual, color management tutorial, data line, black and white correction cylinder, protection cover, wrist band, portable bag, electronic color card
    Optional accessories Powder molding machine, micro printer, measurement test report
    Color matching system Can match
    UV light source With the UV light source
