Sales XYH-500 high purity hydrogen generator，Manufacturer

Position: Home > > Lab general equipment > Gas production / processing equipment > Hydrogen generator > XYH-500 high purity hydrogen generator for laboratory

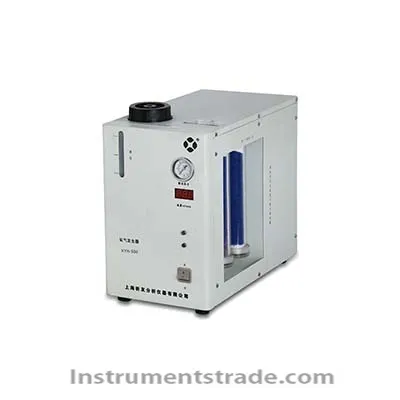

XYH-500 high purity hydrogen generator for laboratory

Product ID：SYQFCqq010

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberXYH-500

Brand NameYIMA

Payment TermsT/T, paypal

Features:
1, Easy to operate, safe and reliable, one-time alkaline, daily use need to add distilled water, start the power switch can produce hydrogen.
2, The pneumatic system is equipped with over-voltage protection device.
3, The unique does not return liquid device, ensure that no return liquid instruments.
4, Flow stability, purity does not decay, can use continuously.
5, all the gas used in stainless steel tube (electrolytic polishing, ultrasonic cleaning), with over-voltage protection device, two purification.
Technical Parameters

Model:	XYH-500
Hydrogen Purity:		99.999%
Out Flow :	0～500ml/min
Out Pressure :0～0.4MPa (Factory Setting 0.3MPa)
Power:	200W
The water quality requirements:		Distilled water
External dimension:		320×185×350mm
Net Weight :	<11kg

Features:
1, Easy to operate, safe and reliable, one-time alkaline, daily use need to add distilled water, start the power switch can produce hydrogen.
2, The pneumatic system is equipped with over-voltage protection device.
3, The unique does not return liquid device, ensure that no return liquid instruments.
4, Flow stability, purity does not decay, can use continuously.
5, all the gas used in stainless steel tube (electrolytic polishing, ultrasonic cleaning), with over-voltage protection device, two purification.
