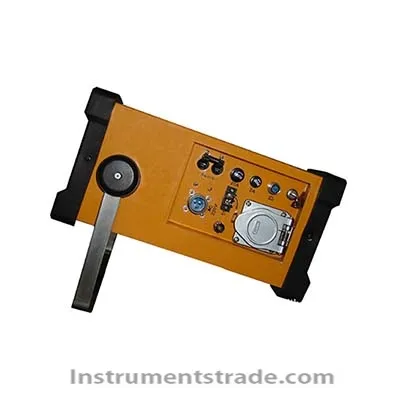

Technical parameters: Model: XXQ2505D The input power: 2.5 KVA or less AC input voltage range: 190 v ~ 250 kv 50 hz The output voltage range: 100 kv ~ 250 kv Voltage differential KV: 1 KV Output current range: 2 ~ 5 ma Focus size: 2.0 x 2.0 Radiation Angle: 40 + 5 ° Sensitivity: 1.8% or less Insulation: SF6 gas insulated Gas pressure: 0.35 Ma ~ 0.45 Ma Controller models: XK3.3 The weight of the generator: 31 kg Controller: 12 kg Penetration: 40 mm (A3 steel) Photo 3 conditions: (A3 steel plate material tianjin taixi intensifying screen 0.03 mm 600 mm lead foil exposure time 5 minutes, developing condition of 20 ℃) Generator unit size: 320 * 320 * 320 Controller unit size: 300 * 280 * 280
Technical parameters: Model: XXQ2505D The input power: 2.5 KVA or less AC input voltage range: 190 v ~ 250 kv 50 hz The output voltage range: 100 kv ~ 250 kv Voltage differential KV: 1 KV Output current range: 2 ~ 5 ma Focus size: 2.0 x 2.0 Radiation Angle: 40 + 5 °
