XLW (EC) Auto Tensile Tester

Product ID:WSHll031

Price: Please inquire PDF Format
Supply Ability:100SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberXLW (EC)
    Brand NameJINANLANGAUGNJIDIAN
    Payment TermsT/T, paypal

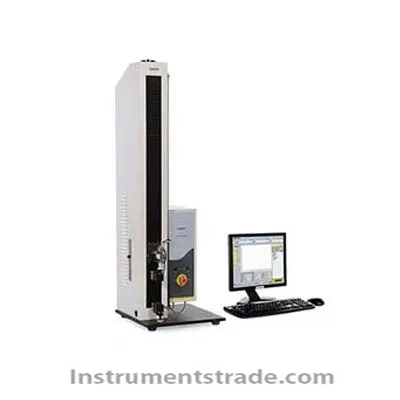

    XLW (EC) Auto Tensile Tester
    Introduction
    XLW (EC) Auto Tensile Tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and low speed unwrapping force as well as other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminium foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.
    This instrument conforms to multiple standards including:
    ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, QB/T 2358, QB/T 1130
    Features
    Better than 0.5% of full scale effectively ensures accurate test results
    Support bidirectional testing modes including stretching and compression and test speed could be adjusted freely
    8 independent test modes are available, including tensile strength, peeling force, tearing force, heat sealing and other performance test.
    Different test range of load cells and 7 distinct test speeds to meet different test requirements
    Pneumatic clamping system provides the even clamping force for specimen to ensure the accuracy of test results
    Intelligent designs of over-travel protection, overload protect, and automatic position reset for safe test operation
    Professional operating software support statistical analysis of group specimens, and export test results in different units
    Support LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports
    Technical Parameters
    Specifications XLW (EC) Auto Tensile Tester
    Load Cell Capacity 500 N (standard) 50 N, 100 N, 250 N (optional)
    750 N, 1000N (Customization Available)
    Accuracy Better than 0.5% FS
    Test Speed Forward 50, 100, 150, 200, 250, 300, 500 mm/min
    Backward 50, 100, 150, 200, 250, 300, 500 mm/min
    Number of Specimens 1
    Specimen Width 30 mm (Standard Grip)
    50 mm (Optional Grip)
    Clamping Way Pneumatic Specimen Clamp
    Gas Supply Air(outside of supply scope)
    Gas Supply Pressure 0.5 MPa ~ 0.7 MPa
    Stroke 950 mm
    Instrument Dimension 450 mm (L) x 450 mm (W) x 1410 mm (H)
    Power Supply 220VAC 50Hz / 120VAC 60Hz
    Net Weight 70 kg

  • Introduction
    XLW (EC) Auto Tensile Tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and low speed unwrapping force as well as other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminium foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.
