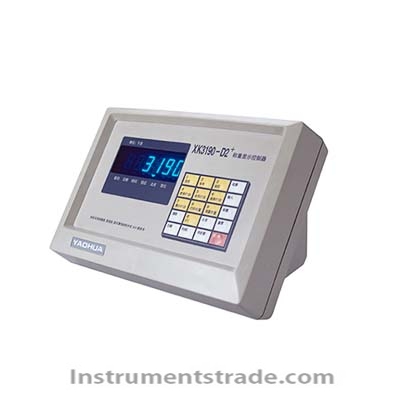

XK3190-D2+electronic weighing instrument Introduction: The XK3190-D2+series instruments have strong adaptability and are widely used in static weighing systems such as electronic ground scales, electronic car scales, and static track scales that use 1-8 sensors. characteristic: 1. High precision A/D conversion, readability up to 1/30000; 2. The zero tracking range and zero setting (power on/manual) range can be set separately; 3. Automatic/manual, daily report/classified statistical report printing settings; 4. Quick fill weighing sheet printing function settings; 5. Store 255 vehicle numbers and their corresponding tare weights, 100 item numbers, and 512 sets of weighing records; 6. Storage/inspection/deletion/power-off protection of weighing records; 7. Manual linear correction calibration; 8. Nonlinear correction of up to 5 points, reducing restrictions on system component requirements; 9. Equipped with RS-232 communication port, with optional baud rate and communication method; 10. Equipped with a large screen communication port, with two connection methods: 20mA current loop (constant current source) and RS-232; 11. Equipped with a standard parallel printing interface, it can connect to 9-pin or 24 pin wide line printers; 12. D2+P built-in 16 column panel micro printer; 13. Recommended non-standard modified varieties: 14. A modified version of the fast horizontal triple fill printing function; 15. A modified version with automatic record storage and password deletion function for exceeding limits; Technical parameters: A/D conversion method: double integral fraction A/D conversion rate: 50 times/second Maximum A/D conversion count: ≈ 700,000 Input signal range: 0mV~30mV Input sensitivity: ≥ 1μV/e Sensor bridge power supply: DC15V； I≤350mA Number of connected sensors: can connect 8 350 Ω sensors Sensor connection method: 6-wire system, long line automatic compensation, compensation distance ≤ 50 meters Calibration division number: 3000 Maximum external degree: 30000 Division value: 1/2/5/10/20/50/100 optional Display mode: 6-digit VFD digital display, 6 status indicators Display range: - 99990～320000（e=10）
Introduction: The XK3190-D2+series instruments have strong adaptability and are widely used in static weighing systems such as electronic ground scales, electronic car scales, and static track scales that use 1-8 sensors.
