Brief introduction:

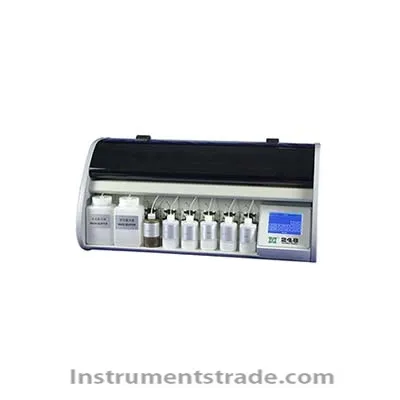

Automatic Western blotting instrument is an intelligent automatic operating protein (Western blot) kit for use in universities, Centers for Disease Control, Inspection and Quarantine Systems, and Hospital Laboratory. Automated operation of Western blot, Western blot, or other similar kit for central laboratories and research institutes. Characteristics:
-Mainly for automated operation of protein (immuno) imprinting or other similar kits; -Autoimmune diseases: Ena Ana, autoimmune liver diseases, autoantibodies to diabetes; -Virus infection: HIV / HCV HEV, human T lymphocyte virus, etc.;
-Bacterial, parasitic infections: Helicobacter pylori HPX, Treponema, syphilis, toxoplasmosis, etc. -specific allergens;
-There is no need for guards to operate;
-Controlled temperature selection of rocker: room temperature -25 ℃ -30 ℃ -37 ℃; -All-Chinese (English) man-machine dialogue; -38 2 (preprogrammed) project procedures -Can be programmed in the machine, flexible and convenient for long-term preservation; -36 or 30 bands can be detected at the same time;
-A new type of negative pressure suction nozzle with high and low double liquid level sloping mouth to ensure that the instrument is free from cross contamination;
-Automatic cleaning function: the automatic cleaning program can be operated on demand;
-Correction and positioning function: it has the function of adjusting and locating the moving parts of the adding / sucking arm;
-Quantitative correction function of liquid distribution pump: it has the function of internal software for quantitative correction of liquid distribution pump;
-The creep pump can automatically correct the adding error under the control of computer, and the quantitative correction function of the fluid distribution pump;
-A fully enclosed pipeline system with safety protection for operators;
-Lock preprogrammed and unlock preprogrammed;
-The mobile positioning mechanism of the software self-calibrating instrument, which is convenient and easy to use;
-Warning function: alert alarm can be set up, add reagent, add substrate, waste liquid overflow alarm and the end of work, and so on prompt alarm;
-Help function: set the pump name, lock or unlock items, query or insert items, delete, etc. Technical parameters:
Test strip capacity: 1-48
Programming capacity: ≥ 482 (solidified program) item
Number of pumps for liquid distribution system: standard 8 channels
Distribution range of pump: increment: 0000 ul-3000 ul / 1 ul
Quantitative Correction method of liquid Distribution: Semi-automatic Quantification Correction
Incubation time / increment: 0 h -24 h / 1 min cycle
Incubation time display: hour min second
Shaker speed: 3 stops optional
Communication: RS232 interface specification baud rate 9600 bits 8 stop bit 1 parity no Reagent bottle capacity: 200 mL × 6
Washing bottle capacity: 1000 mL × 2
Waste liquid bottle capacity: 2000 mL × 1 (No leakage closed negative pressure waste liquid bottle)
Power supply: ac 220V ±22V / L 50Hz ±1Hz
Rated power: < 250VA
The accuracy of the reagents distribution of the pump is ±3.0.
When the reagents are distributed at 2000 μ L in each channel.
The precision of the reagents of the liquid pump: CV ≤ 5.0 (when the reagents in each channel are 2000 μ L)
Rocker temperature control: room temperature, constant temperature of 37 ℃ Temperature control accuracy: ±1.5 ℃
Cross contamination: when negative and positive samples are tested in alternating order, negative samples should not present a summary of the operation of the positive strip instrument. The test procedure is set according to the requirements of the Western blot kit. Before testing: preparation of reagents and cleaning of pipes before the use of instruments
Test: manual film strips and samples
Results interpretation: kit and / or instrument instruction requirements, standard strip, manual or instrument interpretation.
