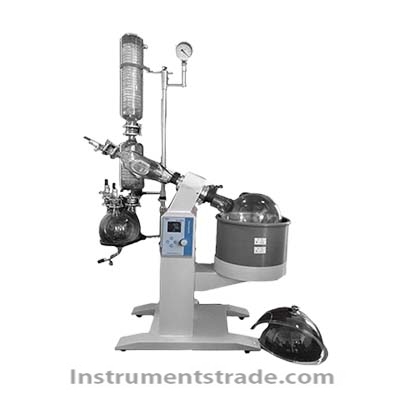

Introduction: The large-capacity water bath rotary evaporator is a novel floor-standing rotary evaporator. It uses a large-capacity, large-diameter rotary evaporation flask to increase the evaporation area. It is placed in a water bath under reduced pressure, and is heated while rotating to make the solution diffuse and evaporate efficiently. It is widely used in large-scale application and sample concentration, drying, extraction, recycling, etc. It is an ideal equipment for scientific research and industrial mass production in chemical, pharmaceutical, food, environmental protection, universities and other fields. Features 1. Main part: Introduce foreign advanced transmission system, reasonable structure, durable and practical. 2. Control, temperature part: Introduce foreign advanced frequency conversion control system and temperature control system to ensure the accurate performance of the instrument. 3. Water bath: The imported stainless steel plate is used for one-time forming, and the vertical type is automatically raised and lowered. 4. Sealing parts: New zu materials from foreign Zui are selected and treated by special technology to enhance sealing, anti-corrosion and wear resistance. 5. The main structure: the use of high-quality aluminum alloy and stainless steel, more perfect and improve the reasonable performance of the instrument. Technical Parameters Model Number: XD-5220A Main unit: Automatic cantilever lift 0-190 mm True air: 399.9 (3mmHg) or less Evaporation capacity: Max.3.6L/min ≥5L/H(H2O) Turning speed: Digital display / knob speed 0-120 rev / min; (three-phase AC induction motor 220V single-phase power supply 250W) Heating pot: One-time forming stainless steel water bath 5KW Temperature: Automatic temperature control, digital display Water bath: room temperature -99 degrees ± 1 °C Cooler: vertical, main condensing pipe + secondary condensing pipe Efficient three-return cooling area 0.76m2 Feeder: Valve-type feeding pipe sleeved with PTFE pipe and retaining ring Sealing ring: Fluorine rubber + PTEF import material combination vacuum sealing gasket Capacity range: 5--20L Total power: 6.3kw, input voltage ~380v/50Hz Volume/weight: Instrument size (length * width * height) 116.5 x 60 x 177cm 95KG 110KG Factory standard: collection bottle 10L1 φ125 flange rotating bottle 20L 1
Introduction: The large-capacity water bath rotary evaporator is a novel floor-standing rotary evaporator. It uses a large-capacity, large-diameter rotary evaporation flask to increase the evaporation area. It is placed in a water bath under reduced pressure, and is heated while rotating to make the solution diffuse and evaporate efficiently. It is widely used in large-scale application and sample concentration, drying, extraction, recycling, etc. It is an ideal equipment for scientific research and industrial mass production in chemical, pharmaceutical, food, environmental protection, universities and other fields.
