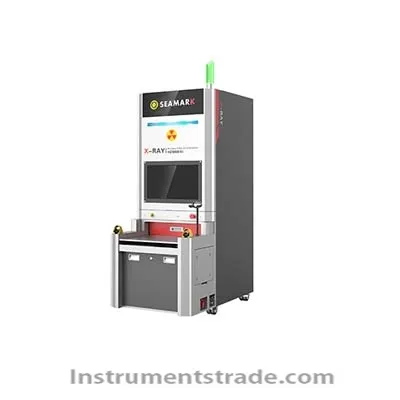

XC1000 offline X-RAY point machine Introduction: The XC1000 is mainly used for rapid counting of reel materials in the SMT industry. It can be used to count full item items such as 7-17 inch Tape Reel/JEDEC Tray/IC moisture sensitive bags. The material type includes all resistance and capacitance materials, and it can interface inventory data information with customer MES systems characteristic: 1. The design refers to human body mechanics, with sitting posture operation, and the display is at the same height as the human eye, protecting the cervical spine, not prone to fatigue, occupying a small space, and can be moved to any position for use 2. The drawer automatically enters and exits, facilitating material handling, automatic sensing of the drawer grating, torque control, and anti pinch hand protection 3. Material label error prevention mechanism, fully inductive identification of the material tray, real-time docking with the printer, taking any tray of material and immediately printing the tray of material information 4. Interface with MES/ERP/WMS and other system data, real-time interactive data, and timely upload and update the counting information 5. Small floor space, equipped with casters, which can be moved to any position for use Technical parameters: complete machine Equipment size: L800mm × W1260mm × H1914mm Tray size: 7 "- 15" Tape Reel Tray height: within 85mm Minimum device: 01005 System docking: MES/ERP/WMS, etc Label printing: TSC industrial printer Input power supply: 220V 10A/110V 15A 50-60HZ Control system: industrial computer WIN10 64 bit X-ray source Light tube type: reflective sealed micro focal spot light source Light tube voltage: 30-80KV Light tube current: 200~700 uA Maximum output power: 56 W Microfocus size: 30-40 um Flat panel detector Plate type: amorphous silicon plate detector (optional) Pixel matrix: 3072 × three thousand and seventy-two Field of view: 427mm × 427mm Resolution: 306Lp/mm Image frame rate (1 × 1) ：6fps AD conversion bit: 16bits Pointing specification Maximum tray size: 17 inches Minimum tray size: 7 inches/containing smaller bulk material Maximum thickness of material tray: 80mm Minimum thickness of material tray: 3mm Compatible minimum device type: 01005 Material tray coverage: continuously updating the database to cover 99% of the materials on the market
Introduction: The XC1000 is mainly used for rapid counting of reel materials in the SMT industry. It can be used to count full item items such as 7-17 inch Tape Reel/JEDEC Tray/IC moisture sensitive bags. The material type includes all resistance and capacitance materials, and it can interface inventory data information with customer MES systems
