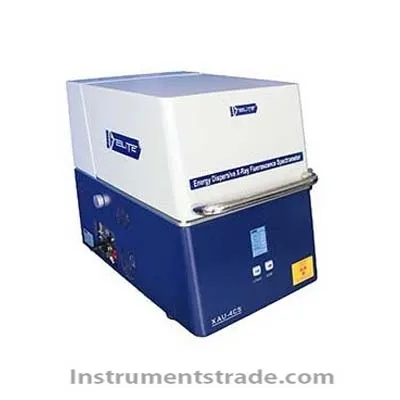

XAU-4CS Spectrum Analyzer Introduction: The XAU-4CS spectrum analyzer is a spectrum analyzer with a compact design and a high degree of module precision. It uses a down-illuminated C-shaped cavity design and is a multi-purpose spectrometer. Using the core EFP algorithm and low-light concentration technology, it not only retains the performance of the special thickness gauge to detect tiny samples and grooves, but also meets the micro-area RoHS detection and composition analysis. XAU-4CS spectrum analyzer is widely used in quality control of various products, incoming inspection and measurement of production process control. Features: 1. Detection of tiny samples: small measurement area of 0.03mm² (lengthened measurement time can be as small as 0.01mm²) 2. Zoom device algorithm: the measurement distance can be changed to measure uneven samples, the zoom distance can reach 0-30mm 3. Advanced EFP algorithm: Li(3)-U(92) element coating layer, multi-layer multi-element, even the same element in different layers can be accurately measured. 4. Advanced de-spectrum technology: reduce the interference of elements with similar energy and lower the detection limit. 5. High-performance detector: SDD silicon drift window area 25mm² detector. 6. X-ray device: micro-focus enhanced ray tube with focusing device. Technical Parameters: Composition analysis range: Aluminum (Al)-Uranium (U) The lowest detection limit of ingredients: 1ppm Coating analysis range: lithium (Li)-uranium (U) The lowest detection limit of coating: 0.005μm Minimum measuring diameter □0.1*0.3mm (minimum measuring area 0.03mm²) Standard configuration: minimum measuring diameter 0.3mm (minimum measuring area 0.07mm²) Focus distance: 0-30mm Sample cavity size: 500mm*360mm*215mm Instrument size: 550mm*480mm*470mm Instrument weight: 45KG XY axis table movement range: 50mm*50mm Maximum load-bearing capacity of XY axis worktable: 5KG
Introduction: The XAU-4CS spectrum analyzer is a spectrum analyzer with a compact design and a high degree of module precision. It uses a down-illuminated C-shaped cavity design and is a multi-purpose spectrometer. Using the core EFP algorithm and low-light concentration technology, it not only retains the performance of the special thickness gauge to detect tiny samples and grooves, but also meets the micro-area RoHS detection and composition analysis. XAU-4CS spectrum analyzer is widely used in quality control of various products, incoming inspection and measurement of production process control.
