X-200S Xenon Light Meter Features
1. The instrument adopts 1280x720 true color LCD display, the host supports U disk storage, the storage amount depends on the size of the U disk; the host saves 10000 sets of curves.
2. The device supports wireless and wired connections. The host test data can be directly exported to the USB flash drive (USB output), and the file name can be customized (Chinese, English, numbers, symbols, etc.)
3. Print interface: HP PCL printer can be connected to the host to support printing A4 paper (USB interface)
4. System upgrade: customer provides instrument number, support U disk upgrade Technical Parameters
Optical path structure: Shibuya-Bogang Seya-Namioka double beam with built-in reference detector
Wavelength range: 190-1100nm
Spectral bandwidth: 1.0 nm, 2.0 nm, 3.0 nm, 5.0 nm
Luminosity range: -4.0- 4.0A, 0-200%T, -0～9999.9C
Working mode: transmittance, absorbance, concentration, reflectivity (optional)
Wavelength accuracy: ±0.2nm
Wavelength repeatability: ≤0.01nm
Photometric accuracy: ±0.2%T
Photometric repeatability: ≤0.08%T
Drift: 0.0004 Abs/h (at 500 nm)
Baseline straightness: ±0.0005Abs
Stray light : ≤0.01%T@ (220nm, 360nm)
Noise: ±0.00008Abs
Display mode: 8 inch touch backlight LCD color screen
Detector: imported silicon photodiode
Light source : pulsed xenon lamp
Sample room : Standard six-cell stand
Grating rotation speed: 31800nm/min
Introduction

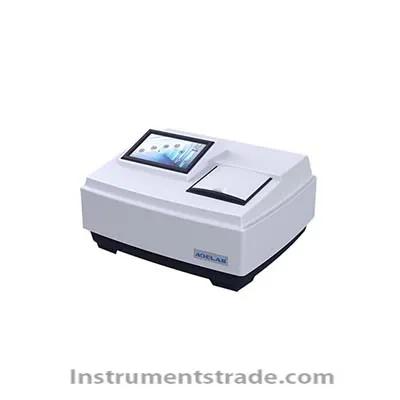

The X-200S Xenon photometer uses an 8-inch touch-backlit LCD color screen. The host supports an unlimited amount of U disk storage based on the size of the U disk. The X-200S Xenon photometer supports wireless and wired connections. Host test data can be directly exported from USB disk (USB output), file name can be customized (Chinese, English, numbers, symbols, etc.)
