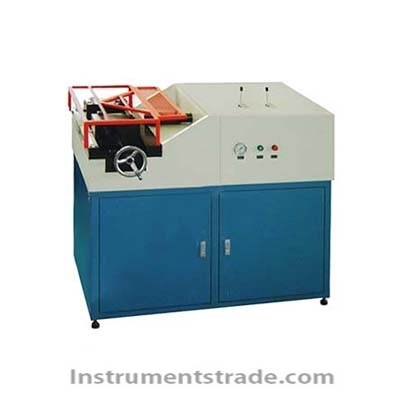

Brief introduction: The machine adopts horizontal structure, hydraulic station are an organic whole, for the integration of the host is mainly composed of kun, kun bending mandrel pressure, the main oil cylinder, side oil cylinder, hydraulic station, the base and the electric control system, etc. Two-way screw press bending roll through the hand wheel rotation, synchronization and, to adjust the pressure roller distance, when the sample to do 180 ° bend, bend heart can be driven by master cylinder first bending pressure kun, again by side cylinder push side clamp, the sample bending to 180 °, convenient operation, high efficiency. Features: 1. The quality inspection departments and relevant enterprises to material performance test and research of commonly used equipment; 2. The machine adopts horizontal structure, hydraulic station are an organic whole, for the integration of the host is mainly composed of roller, roller bending core, main oil cylinder, side oil cylinder, hydraulic station, the base and the electric control system, etc; 3. The pressure curve bending roll through the handwheel two-way screw rotation, synchronization and, to adjust pressure roller distance, when the sample to do 180 ° bend, bend can be driven by master cylinder first heart roller 4. Bending, marching by side cylinder push side clamp again, the sample bending to 180 °, convenient operation, high efficiency. Technical parameters: Biggest test (kN) : 200 Specification of the kun (mm) : ￠100 Bend heart specifications (mm) : ￠3-80 ￠ Bending specimen thickness (mm) : reinforced ￠6 - ￠40 Didn't vertical cylinder compression speed (mm/min) : 500 Horizontal cylinder compression speed (mm/min) : 360 The main piston stroke (mm) : 360 The biggest span (mm) : 400 The host structure forms: one-piece Host appearance size: 1350 * 1250 * 1250 Total power (kW) : 1.5 Weight (kg) : 700
Brief introduction: The machine adopts horizontal structure, hydraulic station are an organic whole, for the integration of the host is mainly composed of kun, kun bending mandrel pressure, the main oil cylinder, side oil cylinder, hydraulic station, the base and the electric control system, etc. Two-way screw press bending roll through the hand wheel rotation, synchronization and, to adjust the pressure roller distance, when the sample to do 180 ° bend, bend heart can be driven by master cylinder first bending pressure kun, again by side cylinder push side clamp, the sample bending to 180 °, convenient operation, high efficiency.
