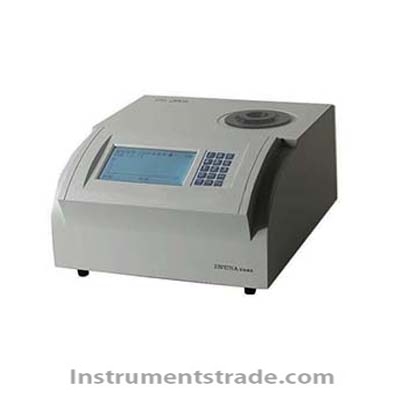

Introduction: Using photoelectric automatic detection, dot matrix liquid crystal display and other technologies, the number of keyboard input, each measurement of a sample, can be measured automatically calculate the average of 3 melting points. With the initial melting, the final melt automatically shows the melting curve automatically records the mean value of melting points automatically. Temperature system uses a high linearity platinum resistance as the detection element, using PID regulation technology to improve the melting point accuracy and reliability. WRS-1B through the establishment of communication interface, you can print or save the working parameters, the instrument uses the capillaries specified by the Pharmacopoeia as a sample tube. Technical Parameters: Product Model: WRS-1B Measuring range: room temperature ~ 320 ℃ Measurement method: automatic Minimum value: 0.1 ℃ Heating rate: 0.2 ° C / min, 0.5 ° C / min, 1 ° C / min, 1.5 ° C / min, 2 ° C / min, 3 ° C / min, 4 ° C / min, Indication error: ≤200 ℃: ± 0.4 ℃;> 200 ℃: ± 0.7 ℃ Indication repeatability: 0.3 ℃ when the heating rate is 1.0 ℃ / min Linear temperature error: ± 10% Processing capacity: 1 Capillary size: diameter φ1.4mm, diameter φ1.0mm, length 90mm Sample height: 3-5mm Display mode: LCD display Calibration method: multi-point calibration Communication Interface: RS232 / USB Printer Model: RD-TH32-SC (optional) Power: 220V ± 22V, 100W, 50Hz ± 1HZ Instrument size: 360mm × 290mm × 170mm Instrument net weight: 9kg
Introduction: Using photoelectric automatic detection, dot matrix liquid crystal display and other technologies, the number of keyboard input, each measurement of a sample, can be measured automatically calculate the average of 3 melting points. With the initial melting, the final melt automatically shows the melting curve automatically records the mean value of melting points automatically. Temperature system uses a high linearity platinum resistance as the detection element, using PID regulation technology to improve the melting point accuracy and reliability. WRS-1B through the establishment of communication interface, you can print or save the working parameters, the instrument uses the capillaries specified by the Pharmacopoeia as a sample tube.
