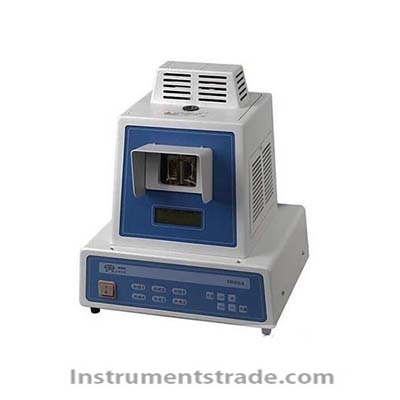

characteristics Determination of the melting point of crystalline materials in order to determine its purity. Mainly used for the determination of drugs, dyes, perfumes and the melting point of crystalline compounds. Measurement method of completely accorded with the standard of pharmacopoeia. Measure three samples at the same time, the automatic calculation of initial, final melting point average. With LED as the light source, durable, non stick out a mile. Deep color of samples can be measured. Direct observation of the melting process, the melting point detection method is designed according to the Chinese Pharmacopoeia. Technical indicators Determination of melting range: 40 to 280 DEG C The melting point of display: LCD Display the minimum reading: 0.1 degrees Determination of melting point accuracy: less than 200 - 0.5 Deg. C More than 200 - 0.8 Deg. C Repeatability: the heating rate of 1 /min at 0.3 DEG C The initial temperature accuracy: plus or minus 0.1 DEG C Linear heating rate: 0.5 degrees /min, 1 degrees /min, 1.5 degrees /min, 3 degrees /min four file Linear heating rate error: 10% The heat conducting medium: Oil Instrument: the instrument level to meet the requirements of the 0.5 level of technology JJG7011990 Capillary dimensions: the: 0.90mm ~ 1.20MM Thickness: 0.10mm ~ 0.15mm Length: 120mm Power supply: AC220V + 22V 50Hz + 1Hz power: 250W Size: 270mm * 310mm * 400mm Instrument weight: 12.5kg Output interface: RS232
characteristics Determination of the melting point of crystalline materials in order to determine its purity. Mainly used for the determination of drugs, dyes, perfumes and the melting point of crystalline compounds. Measurement method of completely accorded with the standard of pharmacopoeia. Measure three samples at the same time, the automatic calculation of initial, final melting point average. With LED as the light source, durable, non stick out a mile. Deep color of samples can be measured.
