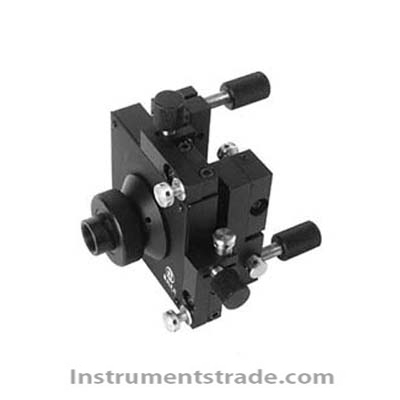

Features: 1. Add a two-dimensional ultra-precision linear fine-tuning structure in the linear adjustment of Ty and Tz directions with a minimum resolution of 0.01 μm. 2. In the angle adjustment θy, θz direction, the ultra-precision fine-tuning structure is added, the minimum resolution is 0.00001°, the adjustment is fine, the structure is stable, the drift is prevented, and the repeatability is good. 3. Adjust the M4x0.3 fine tooth screw 4. Linear adjustment maximum stroke 5mm 5. And can be locked Technical Parameters: Model WN51KM10 Card mounting method Mounting aperture M12x0.75 Tx: 6mm Ty: ±2.5mm Tz: ±2.5mm Θy: ±4° Θz: ±4° Weight: 0.6kg
Features: 1. Add a two-dimensional ultra-precision linear fine-tuning structure in the linear adjustment of Ty and Tz directions with a minimum resolution of 0.01 μm. 2. In the angle adjustment θy, θz direction, the ultra-precision fine-tuning structure is added, the minimum resolution is 0.00001°, the adjustment is fine, the structure is stable, the drift is prevented, and the repeatability is good. 3. Adjust the M4x0.3 fine tooth screw 4. Linear adjustment maximum stroke 5mm 5. And can be locked
