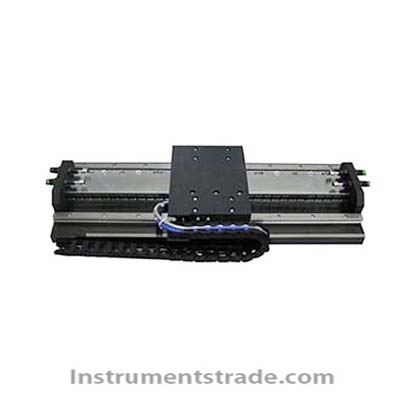

WN500TA (100-800) H linear motor translation stage
Features: 1. High-performance linear motor and linear slider guide, high load bearing, good rigidity, fast speed and acceleration, suitable for industrial processing, laboratory or places requiring high load, high speed and long-term continuous operation. 2. High-performance linear motor drive, repeated positioning accuracy and absolute positioning accuracy: linear motor drive cancels the transmission error caused by mechanical structure such as screw, and reduces the error caused by the delay of the transmission system during interpolation. The feedback greatly improves the accuracy; there is no axial clearance and return clearance: due to the direct drive, the motion hysteresis caused by the elastic deformation, frictional wear and backlash of the intermediate transmission link during start-up, shifting and commutation is avoided; high-speed response: speed Fast, accelerated time period; 3. Translation stage travel can be customized according to customer requirements Technical Parameters: Stroke: 100 mm Table size: 120 × 165mm Guide rail: high precision linear slider guide Linear motor: High performance linear motor: SM-II Body material: Aluminum alloy / stainless steel Surface treatment: anodized black Countertop load: 20kg Weight: 9.8kg Scale resolution: 0.1μ, 0.5u, 1μ Maximum speed: 3000mm/sec Repeat positioning accuracy: 1μ (system repeat positioning accuracy and grating resolution) Absolute positioning accuracy: 3μ (system absolute positioning accuracy and grating resolution) Straightness: 3μ Motion parallelism: 10μ Pitch: 25′′ Pivot: 20′′ Maximum acceleration: 2G (acceleration and stroke, load related)
Features: 1. High-performance linear motor and linear slider guide, high load bearing, good rigidity, fast speed and acceleration, suitable for industrial processing, laboratory or places requiring high load, high speed and long-term continuous operation. 2. High-performance linear motor drive, repeated positioning accuracy and absolute positioning accuracy: linear motor drive cancels the transmission error caused by mechanical structure such as screw, and reduces the error caused by the delay of the transmission system during interpolation. The feedback greatly improves the accuracy; there is no axial clearance and return clearance: due to the direct drive, the motion hysteresis caused by the elastic deformation, frictional wear and backlash of the intermediate transmission link during start-up, shifting and commutation is avoided; high-speed response: speed Fast, accelerated time period; 3. Translation stage travel can be customized according to customer requirements
