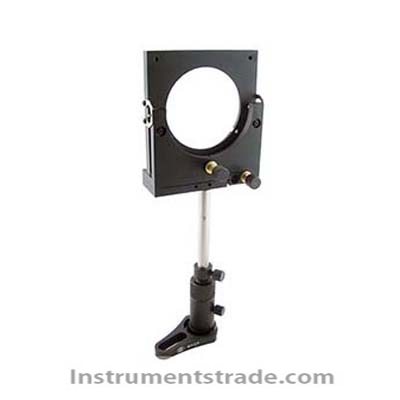

WN02WX (50-106) universal reflection / spectroscope frame

Product ID：GSYtzjia009

Price: Please inquire PDF Format

Supply Ability:120 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberWN02WX (50-106)

Brand NameWEINAGUANGKE

Payment TermsT/T, paypal

WN02WX (50-106) universal reflection / spectroscope frame
Features:
1.M6x0.25 fine tooth screw adjustment (with copper nut)
2. Disc spring reset, adjustable resetting force, from zero to rigid
3. Three-point PTFE support, protective lens
4. Two-dimensional orthogonal coplanar adjustment of the lens to keep the optical path unchanged
Technical Parameters:

Product number	WN02WX50	WN02WX80	WN02WX100	WN02WX102	WN02WX106
A	50 mm	80 mm	100 mm	102 mm	106 mm
B	48 mm	75 mm	95 mm	97 mm	107 mm
C		25 mm	25 mm	50 mm	50 mm
D	60 mm	75 mm	85 mm	86 mm	86 mm
L	57 mm	93 mm	113 mm	90 mm	84 mm
H	102 mm	128.5 mm	146.5 mm	151.5 mm	151.5 mm
T	84 mm	110 mm	130 mm	132 mm	132 mm
Adjustment range	±5°
Self weight	0.25 kg

Features:
1.M6x0.25 fine tooth screw adjustment (with copper nut)
2. Disc spring reset, adjustable resetting force, from zero to rigid
3. Three-point PTFE support, protective lens
4. Two-dimensional orthogonal coplanar adjustment of the lens to keep the optical path unchanged
