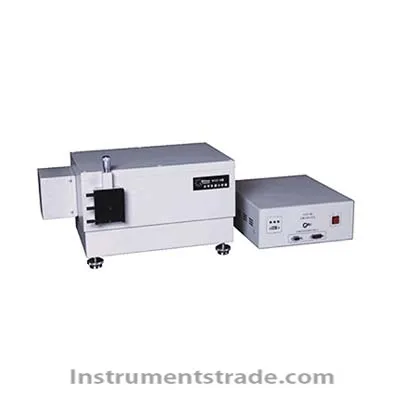

WGD-6 Optical Multichannel Analyzer Introduction
The WGD-6 optical multichannel analyzer is suitable for use in physics research and spectral analysis for universities and research institutions. The optical multi-channel analyzer uses CCD (Charge Coupled Device) as a detector, which broadens the application range of the instrument, and can be acquired in real time and in three-dimensional display. It is an ideal tool for studying spectra. Technical parameters
Focal length: 300mm
Relative aperture: D/F=1/7
Scanning range: 300nm-900nm
Resolution: ≤0.2nm
Slit: Width 0-2mm continuously adjustable, indication accuracy 0.01mm
Wavelength accuracy: ±0.4nm
Wavelength repeatability: 0.2nm
Stray light: ≤10-3
Dimensions: 450mm × 280mm × 230mm
Weight: 25kg
Introduction
The WGD-6 optical multichannel analyzer is suitable for use in physics research and spectral analysis for universities and research institutions. The optical multi-channel analyzer uses CCD (Charge Coupled Device) as a detector, which broadens the application range of the instrument, and can be acquired in real time and in three-dimensional display. It is an ideal tool for studying spectra.
