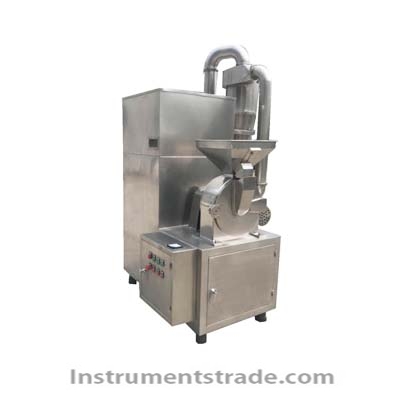

WFJ-400 wind selective turbine crusher Introduction: This unit is suitable for other industries such as pharmaceuticals, food, and chemicals. It has various properties such as air cooling and air selection, and is suitable for crushing and processing low to medium hardness materials such as ginger, chili, pepper, oil and wheat, soybeans, star anise, cinnamon, grains, and dried vegetables, The fineness can be adjusted between 5-150 mesh, which has the advantages of high yield, fine particle size, low noise, low energy consumption, simple maintenance, and easy installation. It is suitable for crushing and processing low hardness materials such as oily, viscous, thermosensitive, and fibrous oils and fats. working principle: The machine consists of a crushing host, a cyclone separator, a pulse dust removal box, and other components. The material enters the crushing chamber from the feeding hopper and is crushed by high-speed rotating hammers and fixed toothed discs. The crushed material enters the cyclone separator through centrifugal force and induced draft fan action, Then, by turning off the fan and discharging the dust, it enters the pulse dust removal box and is filtered through the filter cartridge before being recycled. The machine is designed according to the "GMP" standard and is entirely made of stainless steel material. There is no dust flying during the crushing process. Technical parameters: Crushing motor: 11KW High pressure fan: 2.2KW Cutting motor: 0.55KW throughput: 100-800kg Equipment weight: 850kg Grinding fineness: 20-150 mesh Contactor, thermoelectric protection: matching Electric box: matching Crushing disc: 20mm Host wall panel: 25mm Crush the fixed gear ring: 20mm Pulse dust removal box: 2.5mm Cyclone separator: 2.5mm Hopper: 1.5mm cloth bag: 300-800 Tool: Square
Introduction: This unit is suitable for other industries such as pharmaceuticals, food, and chemicals. It has various properties such as air cooling and air selection, and is suitable for crushing and processing low to medium hardness materials such as ginger, chili, pepper, oil and wheat, soybeans, star anise, cinnamon, grains, and dried vegetables, The fineness can be adjusted between 5-150 mesh, which has the advantages of high yield, fine particle size, low noise, low energy consumption, simple maintenance, and easy installation. It is suitable for crushing and processing low hardness materials such as oily, viscous, thermosensitive, and fibrous oils and fats.
