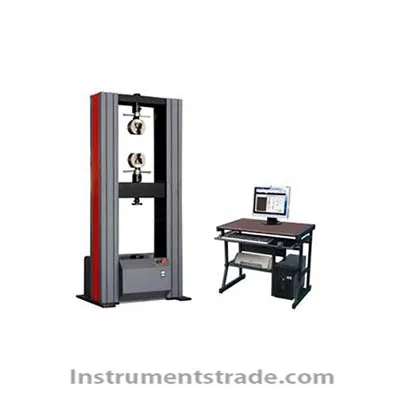

WDW-50KN material electronic universal tensile testing machine Introduction
Material electronic universal tensile testing machine meets the requirements of national standard GB/T228.1-2010 "Metal material room temperature tensile test method", GB/T7314-2005 "Metal compression test method", in line with GB, ISO, ASTM, DIN, etc. Standard data processing. Can meet the requirements of users and the standards provided.
The material electronic universal tensile testing machine is widely used in the mechanical properties test of tensile, compression and bending of metal and non-metal materials. With a wide range of attachments, it can also be used for mechanical properties testing of profiles and components. In the field of testing of materials such as ropes, belts, wires, rubber, plastics, etc., where the sample has large deformation and high test speed, it also has a very broad application prospect. Applicable to the field of quality supervision, teaching and research, aerospace, steel and metallurgy, automotive, construction and building materials. Technical Parameters
Maximum test force (kN): 50
Accuracy level: Level 1
Test force measurement range: 2%-100%
Relative error of test force indication: <±1%
Test force resolution: 1/300000 of the maximum test force
Deformation measurement range: 2%-100%
Deformation indication relative error: <±1%
Deformation resolution: Maximum deformation 1/300000
Relative error of displacement indication: <±1%
Displacement resolution (mm): 0.001
Speed range: 0.01mm/min ~ 500mm/min
Stretching stroke (mm): 700
Compression space (mm): 700
Test width (mm): 450
Can be equipped with fixtures: stretching, compression, bending, shearing, peeling, tearing, etc.
Mainframe dimensions (mm): 868*580*1836
Servo motor power (kW): 1.0
Total weight (kg): 400
