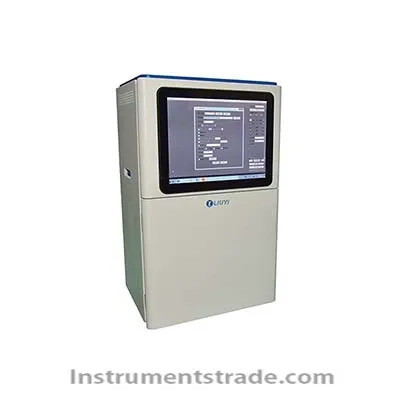

WD-9413D integrated gel imaging system Introduction: WD-9413D integrated gel imaging system is mainly used for nucleic acid and protein electrophoresis observation, photography and scientific analysis of experimental results. Features: 1.500W high-pixel professional black and white camera with clear picture quality; 2. Large touch industrial capacitive screen, high sensitivity, easy to operate; 3. Integrated design, fully sealed and modular integrated circuits, enhancing stability; 4. The software is easy to operate, with the function of automatically turning off the lamp when it is idle, effectively improving the life of the lamp 5. Professional gel shooting and analysis software, one-click imaging, integral shooting; 6. With UV door opening and power failure protection function, the operation of the machine is safer; 7. The push-pull drawer opens the door, the dark box is tightly sealed, and the contaminated area is greatly reduced. Technical Parameters: CCD resolution: 5 million, pixel density 16bit; frame rate: 35; Image resolution: horizontal, vertical: 600DPI; pixel combination: 1×1, 2×2, 4×4; Interface: USB3.0; Exposure time: 1ms-180s; Integral shooting, long-term exposure of samples, image overlay processing, and weak nucleic acid fluorescence The strips are better presented. Lens: imported 6x optical zoom, motorized three-variable large-diameter high-pass lens head (can be synchronized in the software Display the parameters of the lens), F1.2; Drawer-type UV transmission table: UV302nm, standard 22*25cm, equipped with professional rubber cutting protection board, safe Quick cut glue; White light transmission plate: built-in white light transmission plate, 19*27*0.7cm, using optical fiber cold light technology, Uniform optical density, 12V safety voltage; White light reflector: double-sided high-brightness LED integrated light source, low power consumption, long life; Filter: 590nm gel special imported coating filter; Door opening method: wide open the door, push-pull drawer, the dark box is tightly sealed, and the contaminated area is larger and smaller; Software: Gel professional shooting analysis software Detection sensitivity: 20pgEB stained double-stranded DNA. Dimensions: (W*D*H) 443*388*740mm Wavelength of reflected ultraviolet light source: 254nm, 365nm Transmission ultraviolet light source wavelength: 302nm Ultraviolet light transmission area: 220*250mm Visible light transmission area: 190*270mm
Introduction: WD-9413D integrated gel imaging system is mainly used for nucleic acid and protein electrophoresis observation, photography and scientific analysis of experimental results.
